HMD299T

MCB 2P 15kA D-125A 3M


$605.40 List price: $774.10
+

Weight: 0.500 kg

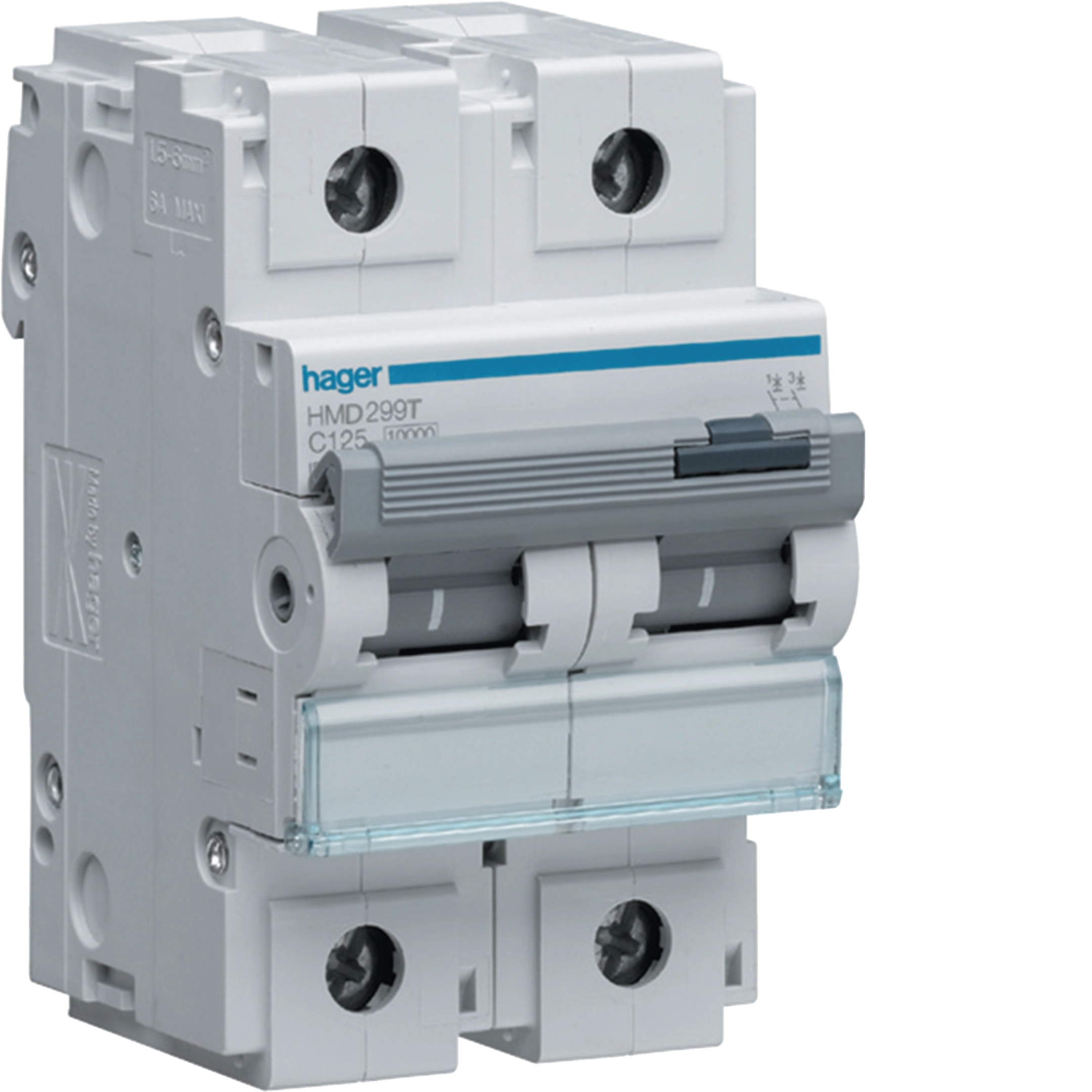

Product Name/Title: MCB 2P 15kA D-125A 3M

Brand: Hager

SKU: HMD299T

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Type of pole: 2P
  • Voltage: 415V AC
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 6000V
  • Frequency: 50 - 60 Hz
  • Nominal tightening torque: 3.5 - 5.0 Nm
  • Electric endurance: 4000 cycles
  • Mechanical operations: 20000
  • Dimensions (H x L x W): 90mm x 70mm x 53mm
  • Weight: 0.5 kg
Key Features
  • Rated operational voltage: 415V AC
  • Rated current: 125A
  • Rated short-circuit breaking capacity: 15kA
  • Screw terminal connections for modular devices
  • High endurance with 20,000 mechanical operations
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 2P 15kA D-125A 3M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
