SCHNAP Logo

Making Trade Life Easy!
Trade Discount 22%
MSN263R

MCB 2P 6kA C-63A 2M


$41.40 List price: $52.90
+

Weight: 0.500 kg

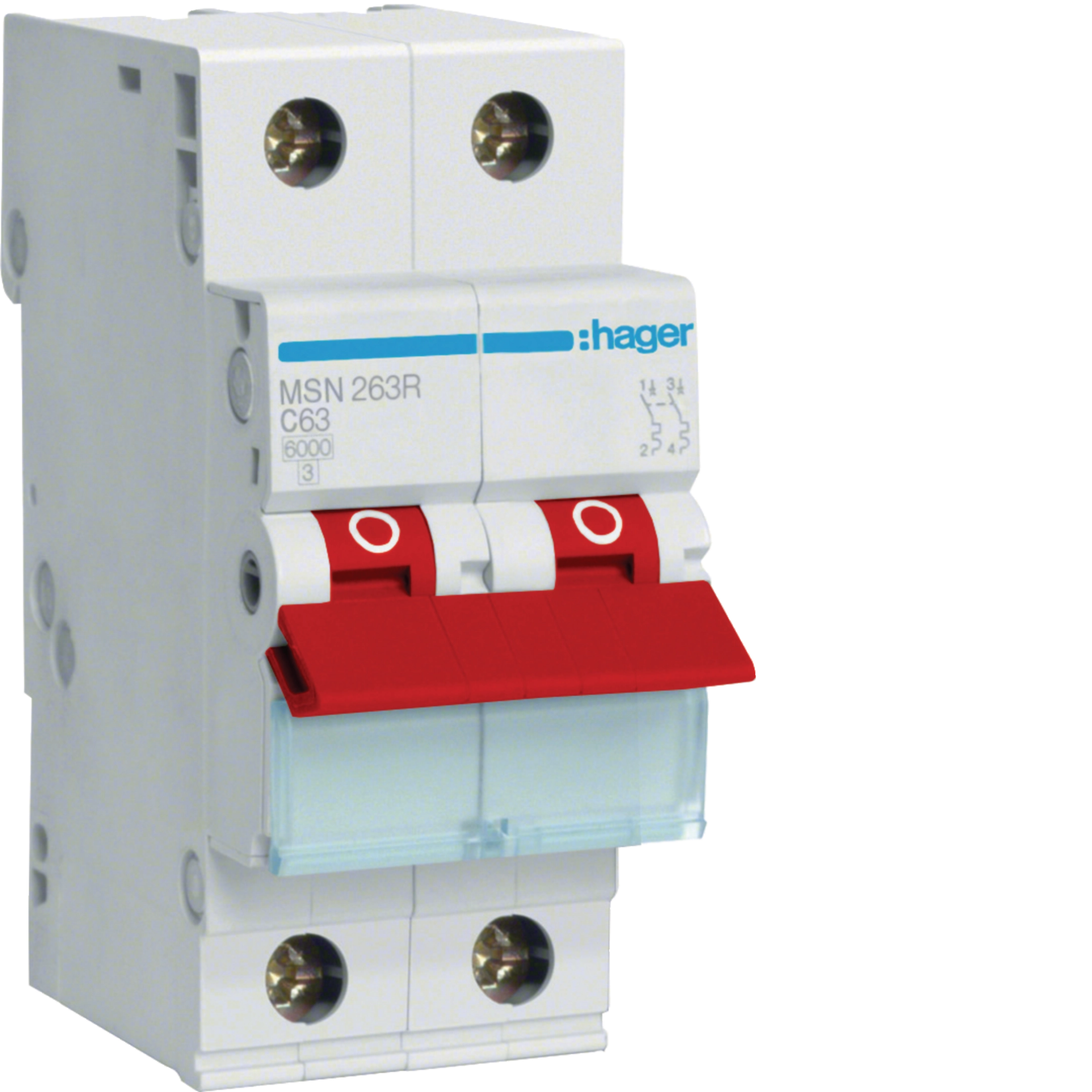

Product Name/Title: MCB 2P 6kA C-63A 2M

Brand: Hager

SKU: MSN263R

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4000 V
  • Frequency: 50 - 60 Hz
  • Ingress Protection (IP) class: IP20
  • Operating temperature: -25 to 70 °C
  • Total power loss under IN: 11.40 W
  • Dimensions (H x L x W): 83mm x 70mm x 35mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 63 A with a breaking capacity of 6 kA.
  • Designed for modular installation with screw terminals.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, electrical panels
  • Commercial: Offices, retail spaces, industrial applications
Standards & Compliance
  • Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 2P 6kA C-63A 2M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
