MDN210P

MCB 2P 6kA D-10A 2M


$105.90 List price: $135.40
+

Weight: 0.500 kg

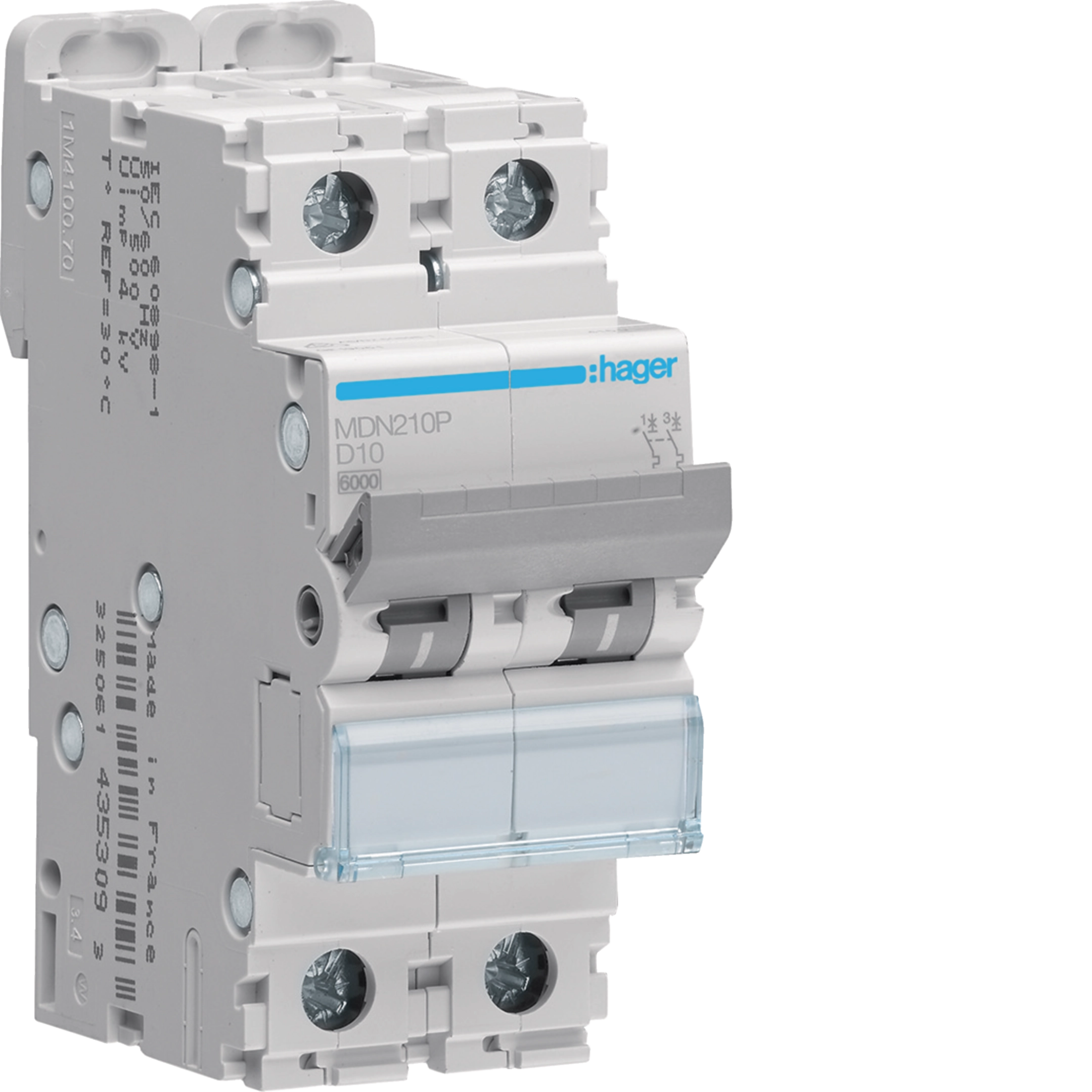

Product Name/Title: MCB 2P 6kA D-10A 2M

Brand: Hager

SKU: MDN210P

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 415V AC
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 6000V
  • Frequency: 50-60 Hz
  • Ingress Protection (IP) class: IP20
  • Nominal tightening torque: 2.80 Nm
  • Connection type: Screw terminal
  • Dimensions (H x L x W): 85mm x 70mm x 35mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 10 A with a breaking capacity of 6 kA.
  • Designed for modular circuit protection with 2 poles.
  • Wide operating temperature range from -25°C to 70°C.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices and retail spaces
  • Industrial: Factories and manufacturing facilities
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 2P 6kA D-10A 2M is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical applications.
