MDN232P

MCB 2P 6kA D-32A 2M


$105.90 List price: $135.40
+

Weight: 0.500 kg

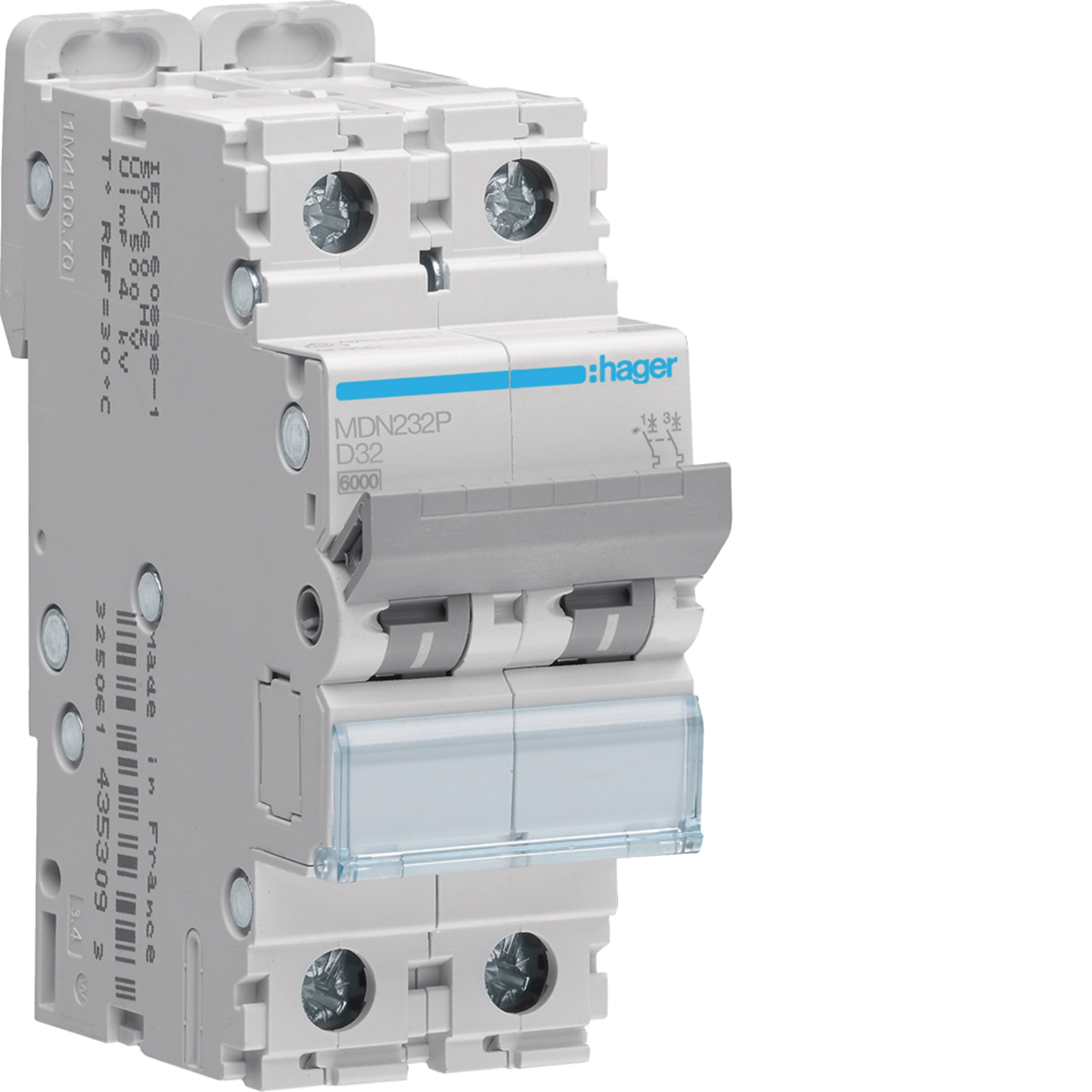

Product Name/Title: MCB 2P 6kA D-32A 2M

Brand: Hager

SKU: MDN232P

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 415V
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 6000V
  • Frequency: 50-60Hz
  • Number of modules: 2
  • Type of pole: 2P
  • Nominal tightening torque: 2.80 Nm
  • Operating temperature: -25°C to 70°C
  • Dimensions (H x L x W): 84.6mm x 70mm x 35mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 32A with a breaking capacity of 6kA.
  • Suitable for use in a wide range of temperatures from -25°C to 70°C.
  • IP20 ingress protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Electrical protection in various installations
Standards & Compliance
  • Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 2P 6kA D-32A 2M is available now for immediate purchase. Ideal for electrical protection in various installations.
