MDN240P

MCB 2P 6kA D-40A 2M


$105.90 List price: $135.40
+

Weight: 0.500 kg

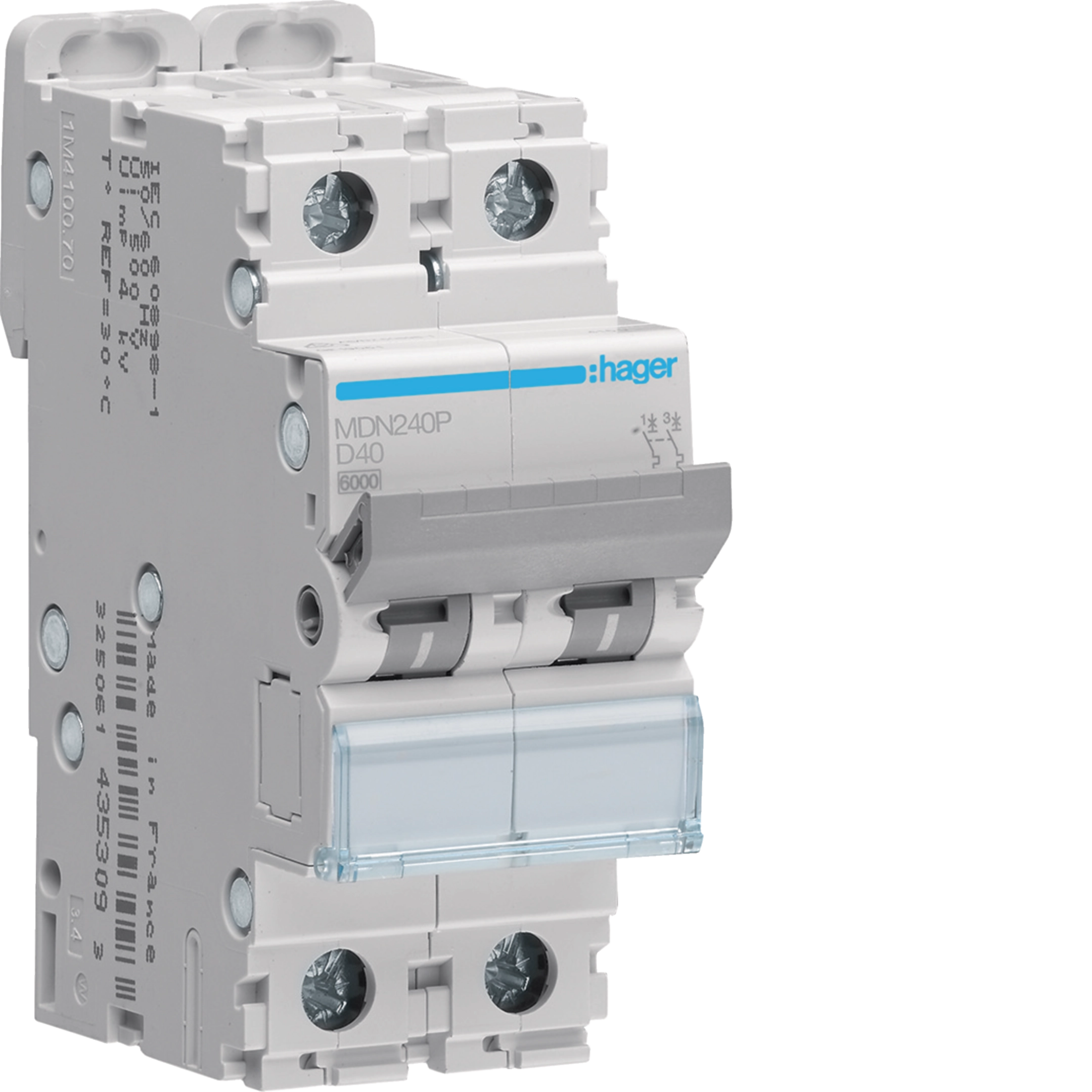

Product Name/Title: MCB 2P 6kA D-40A 2M

Brand: Hager

SKU: MDN240P

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50-60 Hz
  • Number of modules: 2
  • Type of pole: 2P
  • Nominal tightening torque: 2.80 Nm
  • Connection type: Screw terminal
  • Cross-section for massive conductors: 1-35 mm²
  • Cross-section for flexible conductors: 1-25 mm²
  • Dimensions (H x L x W): 84.6mm x 70mm x 35mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 40 A with a breaking capacity of 6 kA.
  • Wide operating temperature range from -25°C to 70°C.
  • IP20 ingress protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 2P 6kA D-40A 2M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
