Trade Discount 22%

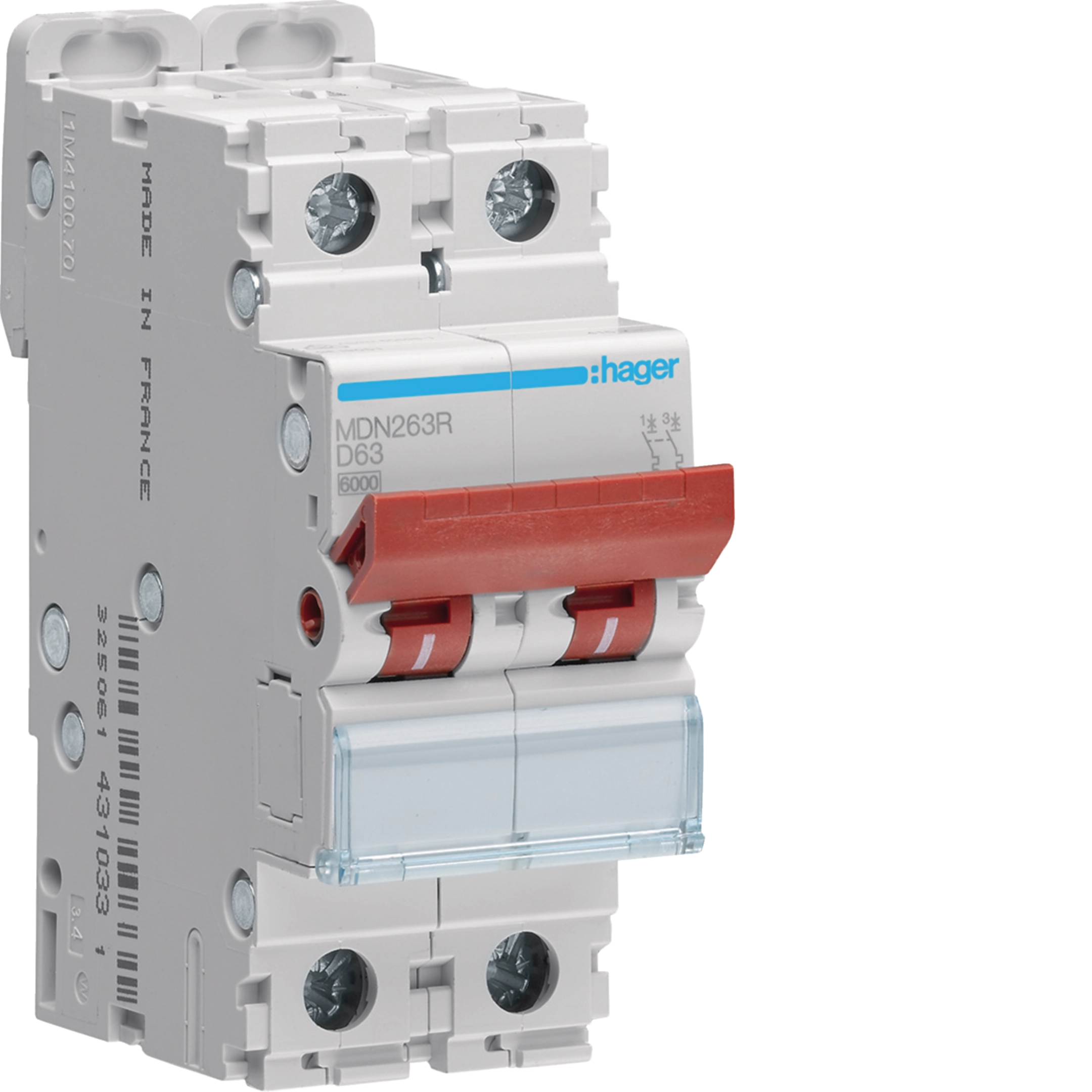

MDN263R

MCB 2P 6kA D-63A 2M


$105.90 List price: $135.40
+

Weight: 0.500 kg

Product Name/Title: MCB 2P 6kA D-63A 2M

Brand: Hager

SKU: MDN263R

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated current: 63 A
  • Rated short-circuit breaking capacity: 6 kA
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Total power loss under IN: 13.10 W
  • Degree of pollution: 3
  • Air humidity protection: 95% at 55°C
  • Dimensions (H x L x W): 84.6mm x 70mm x 35mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 63 A with a breaking capacity of 6 kA.
  • IP20 ingress protection for safe operation.
  • Screw terminal connections for reliable connectivity.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, electrical installations
  • Commercial: Offices, retail spaces, industrial applications
Standards & Compliance
  • Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 2P 6kA D-63A 2M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
