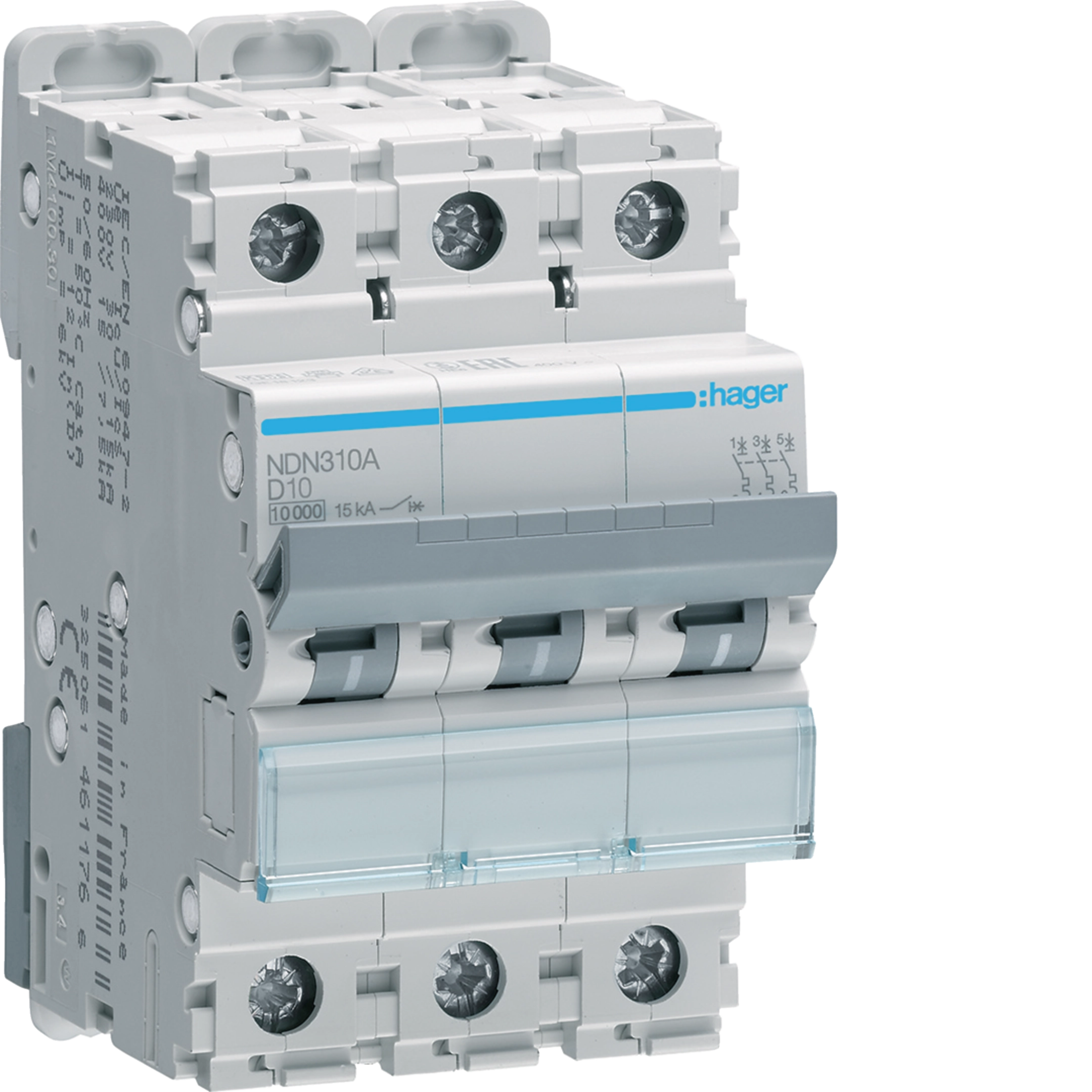

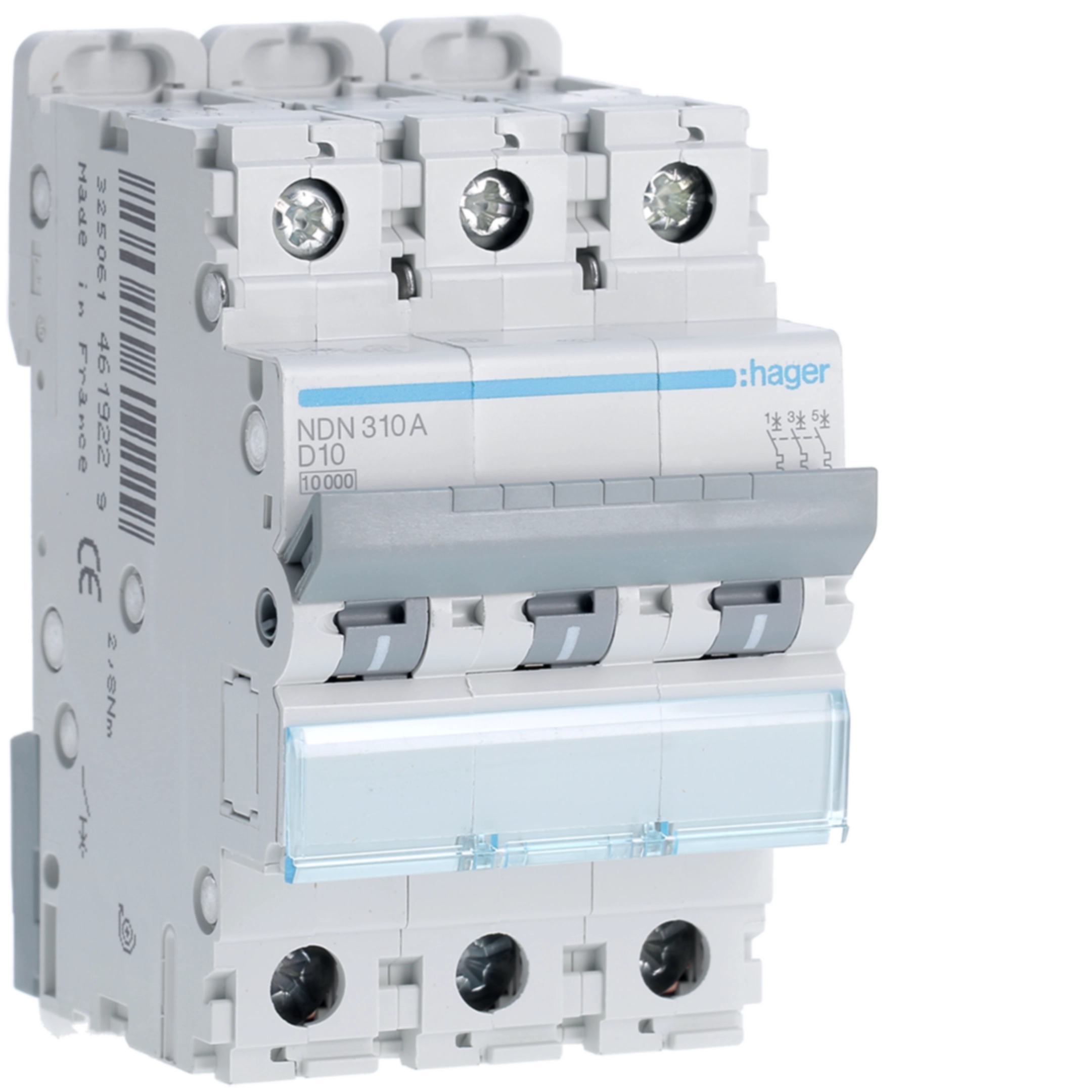

Product Name/Title: MCB 3P 10kA/15kA D-10A 3M
Brand: Hager
SKU: NDN310A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 15 kA
- Rated operational voltage Ue: 400 V
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6000 V
- Frequency: 50 - 60 Hz
- Ingress Protection (IP) class: IP20
- Electric endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Dimensions (H x L x W): 83mm x 70mm x 52.5mm
- Weight: 0.5 kg
Key Features
- Rated current of 10 A with a breaking capacity of 10 kA.
- Three-pole design for versatile applications.
- Wide operating temperature range from -25°C to 70°C.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 3P 10kA/15kA D-10A 3M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
