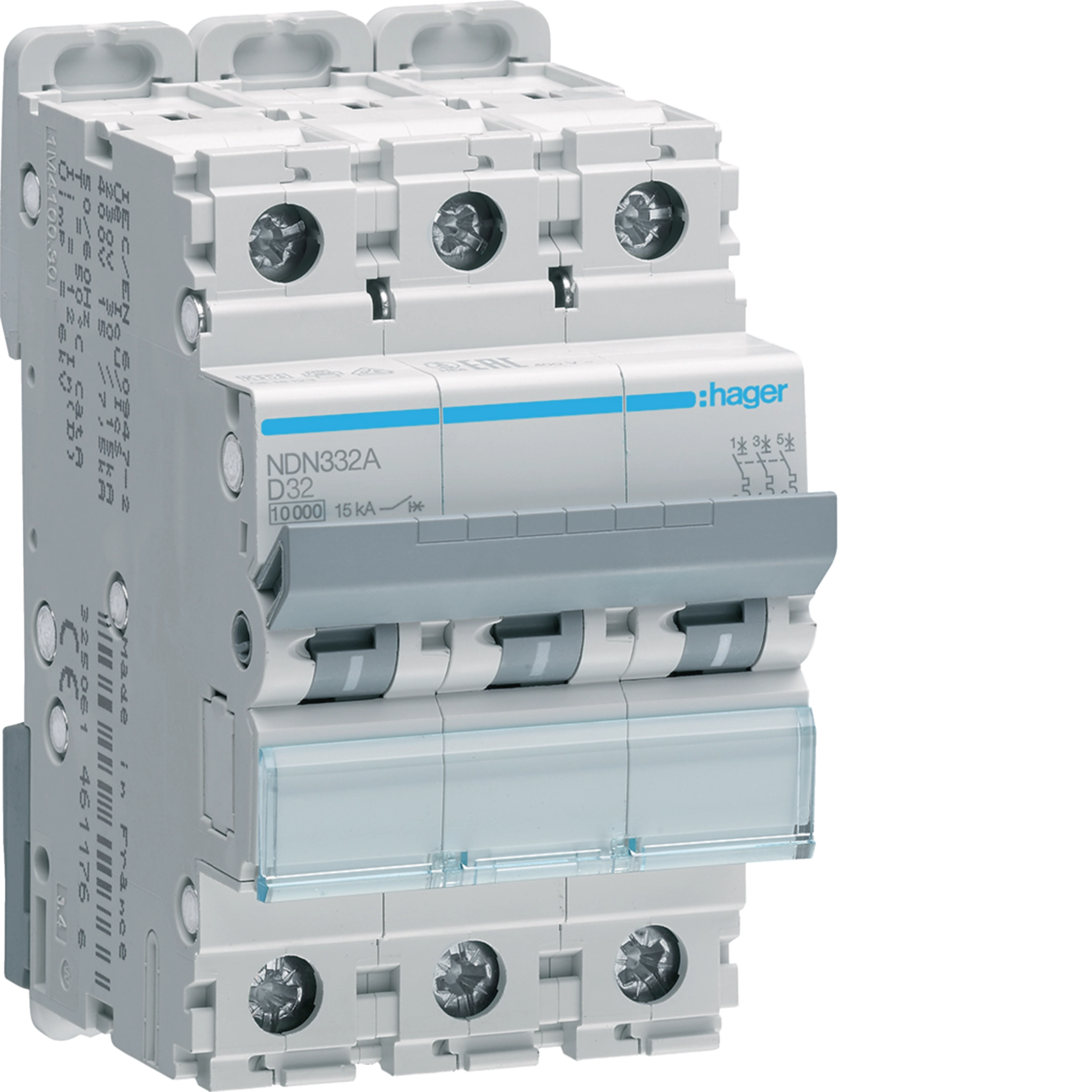

Product Name/Title: MCB 3P 10kA/15kA D-32A 3M
Brand: Hager
SKU: NDN332A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated current: 32 A
- Rated short-circuit breaking capacity: 15 kA
- Rated operational voltage: 400 V AC
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50 - 60 Hz
- Electric endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Nominal tightening torque: 2.80 Nm
- Dimensions (H x L x W): 83mm x 70mm x 52.5mm
- Weight: 0.5 kg
Key Features
- Rated current of 32 A with a breaking capacity of 15 kA.
- Three-pole design for enhanced circuit protection.
- Wide operating temperature range from -25°C to 70°C.
- IP20 ingress protection for safe indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Factories and manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing.
- Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 3P 10kA/15kA D-32A 3M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
