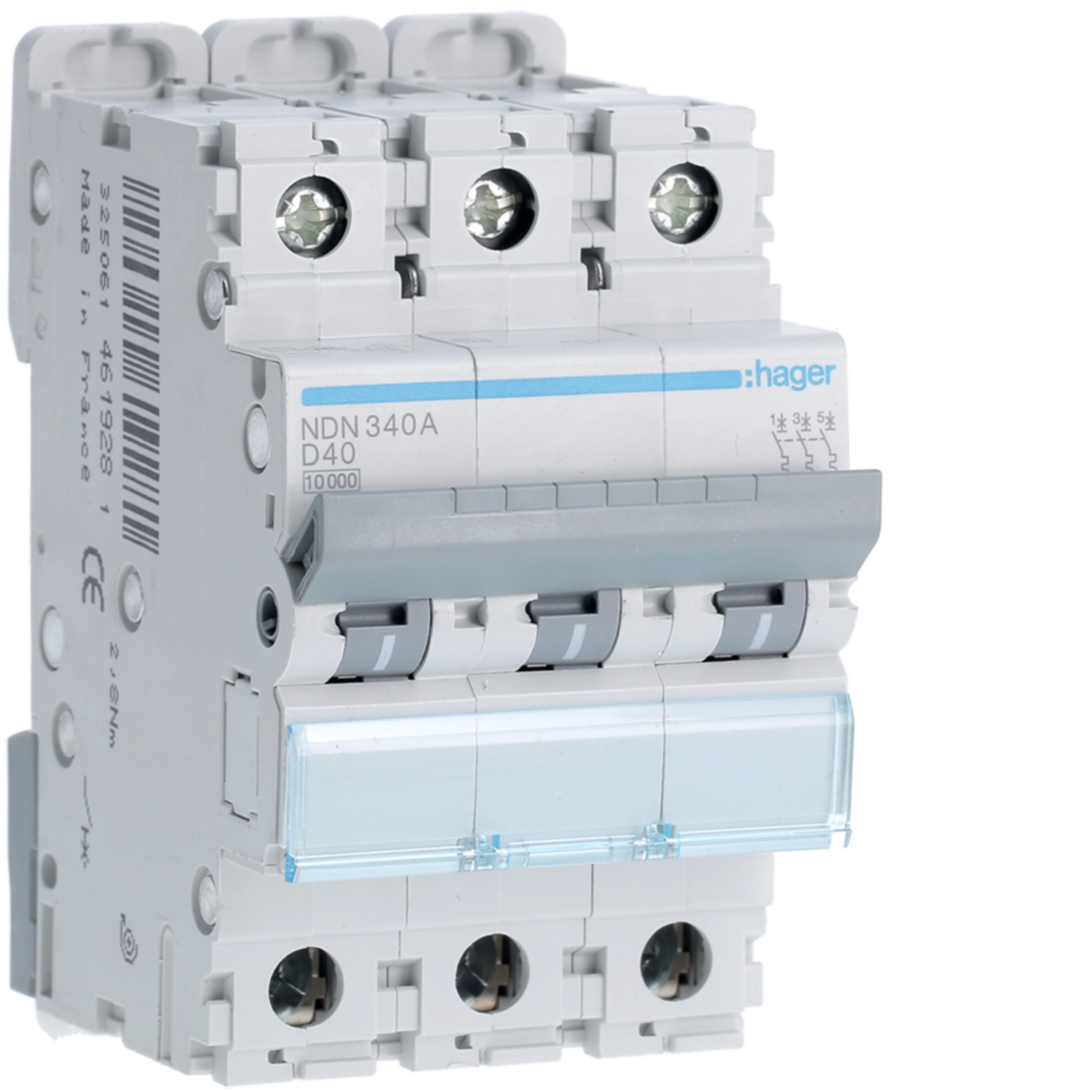

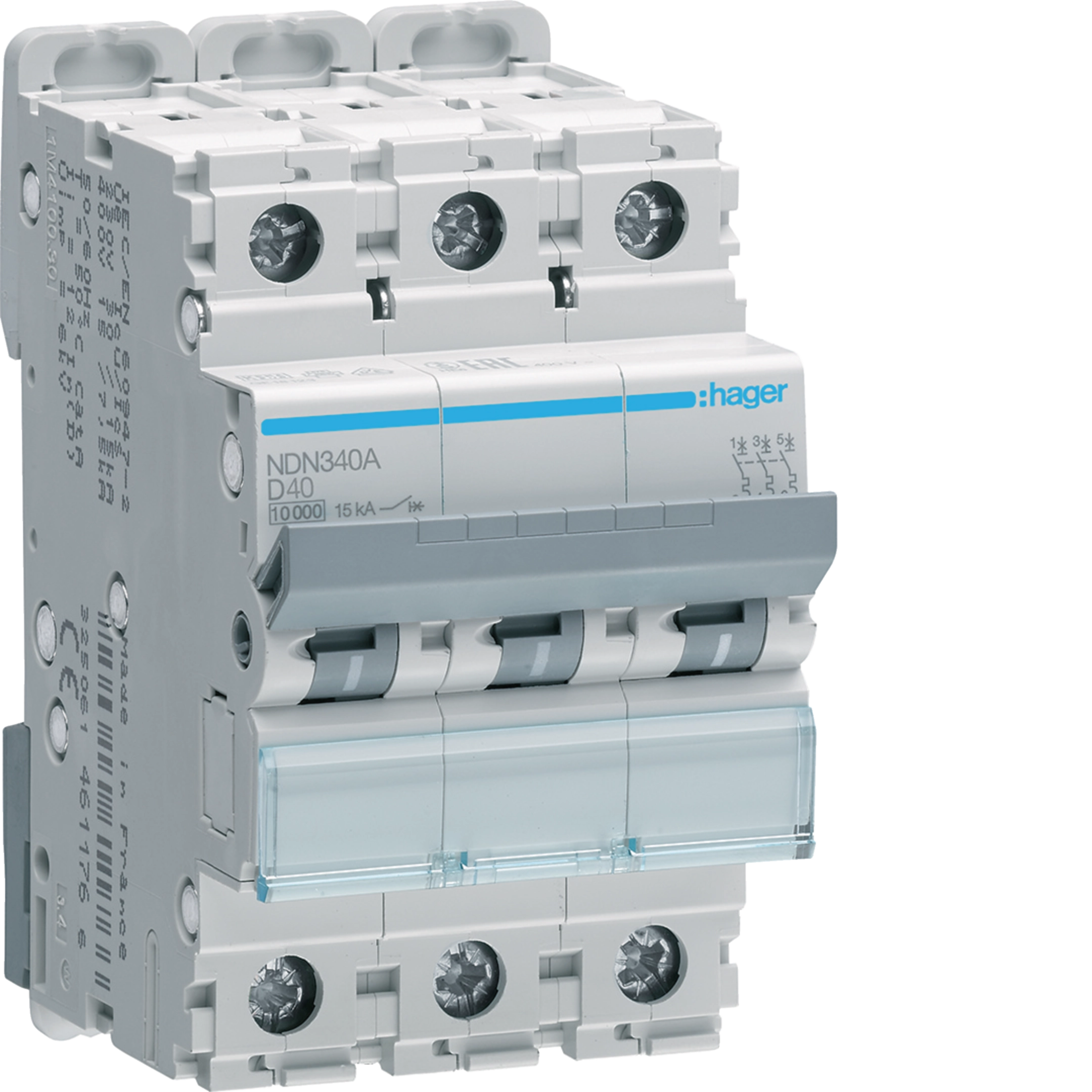

Product Name/Title: MCB 3P 10kA/15kA D-40A 3M
Brand: Hager
SKU: NDN340A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated current: 40 A
- Rated ultimate short-circuit breaking capacity: 15 kA
- Rated short-circuit breaking capacity: 10 kA
- Rated operational voltage: 400 V AC
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Operating temperature: -25 to 70 °C
- Ingress Protection (IP) class: IP20
- Electrical endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Dimensions (H x L x W): 83mm x 70mm x 52.5mm
- Weight: 0.5 kg
Key Features
- Rated current of 40 A with a short-circuit breaking capacity of 10 kA and 15 kA.
- Three-pole design suitable for various electrical applications.
- Compact size for easy installation on DIN rails.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
- RoHS compliant, ensuring reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 3P 10kA/15kA D-40A 3M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
