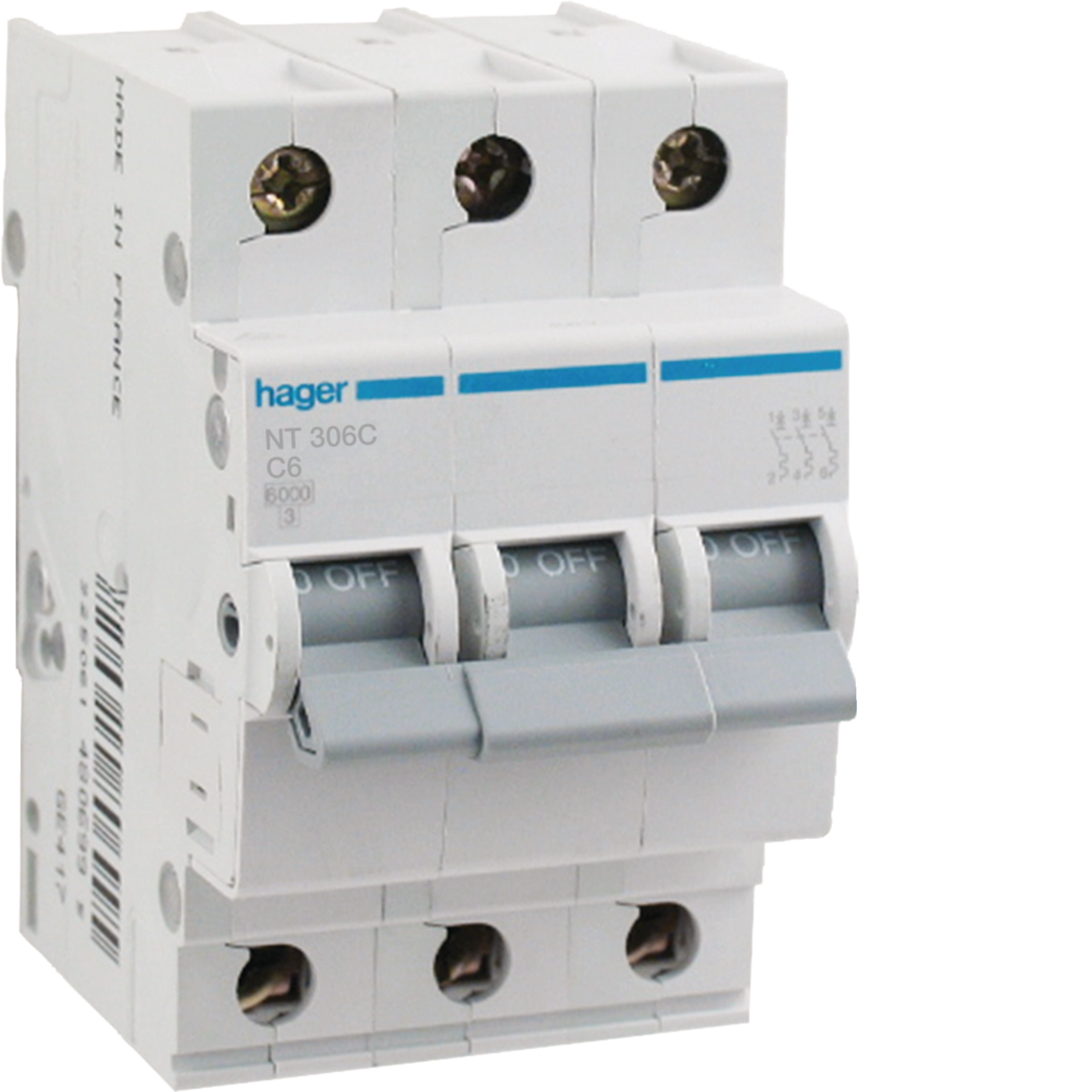

Product Name/Title: MCB 3P 10kA C-6A 3M
Brand: Hager
SKU: NT306C
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Rated operational voltage: 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 - 60 Hz
- Nominal tightening torque: 2.80 Nm
- Cross-section for massive conductors: 1 - 35 mm²
- Operating temperature: -25 to 70 °C
- Total power loss under IN: 3.90 W
- Dimensions (H x L x W): 83mm x 70mm x 52.5mm
- Weight: 0.5 kg
- Rated current of 6 A with a breaking capacity of 10 kA.
- 3-pole design suitable for three-phase systems.
- IP20 ingress protection for safe operation.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
- Complies with AS/NZS 3000 for electrical installations.
- RoHS and REACH compliant, contributing to reduced environmental impact.
2 years warranty against manufacturing defects.
The Hager MCB 3P 10kA C-6A 3M is available now for immediate purchase. Ideal for various electrical protection applications.
