MSN363

MCB 3P 6kA C-63A 3M


$68.90 List price: $88.10
+

Weight: 0.500 kg

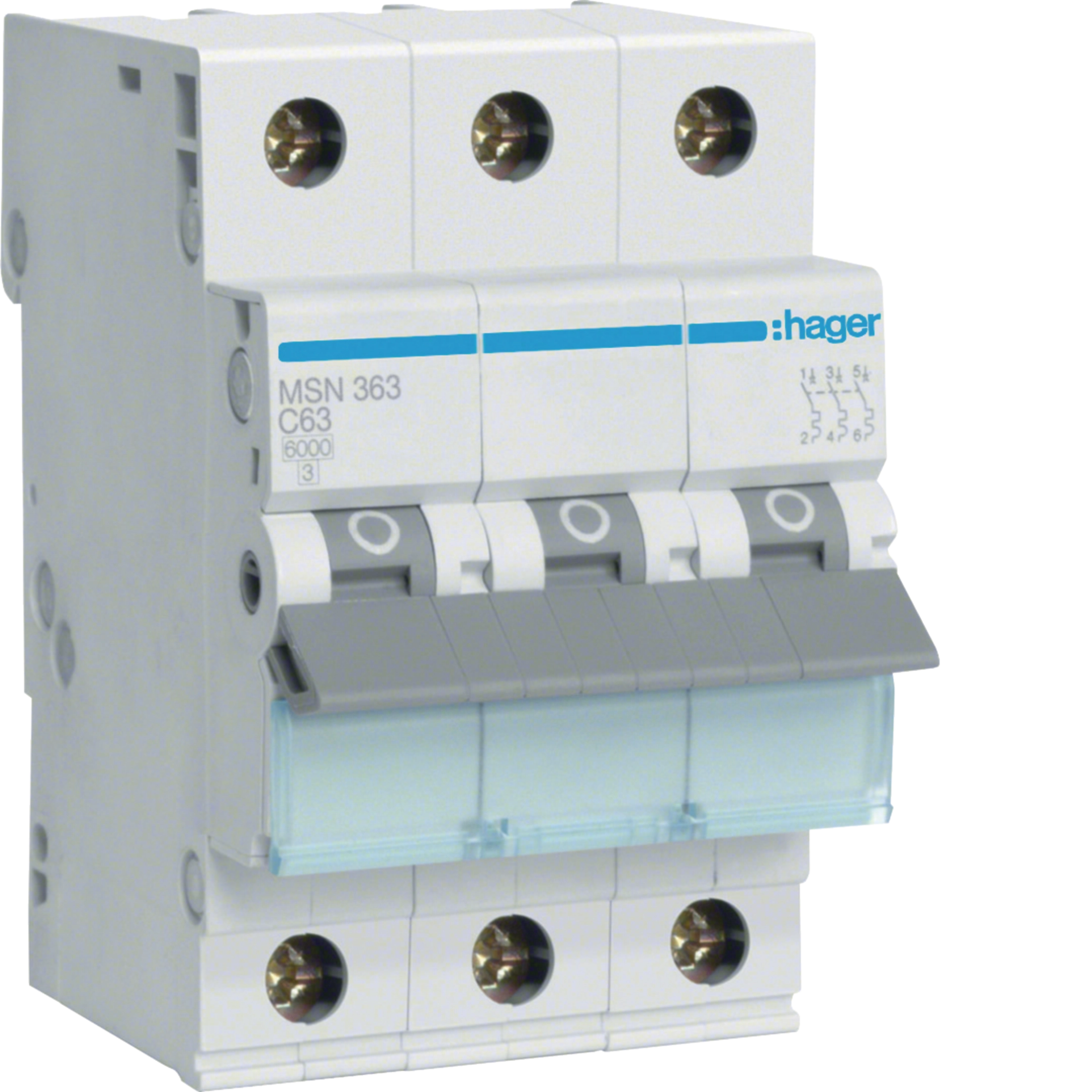

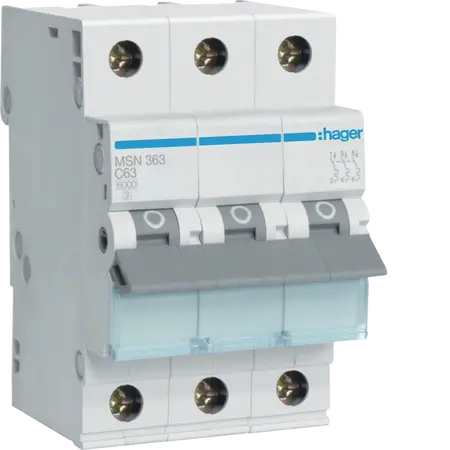

Product Name/Title: MCB 3P 6kA C-63A 3M

Brand: Hager

SKU: MSN363

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4000 V
  • Frequency: 50 - 60 Hz
  • Number of modules: 3
  • Type of pole: 3P
  • Rated short-circuit breaking capacity: 6 kA
  • Nominal tightening torque: 2.80 Nm
  • Ingress Protection (IP) class: IP20
  • Total power loss under IN: 18.3 W
  • Dimensions (H x L x W): 83mm x 70mm x 52.5mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 63 A with a breaking capacity of 6 kA.
  • Suitable for use in various climates with an operating temperature range of -25 to 70 °C.
  • IP20 ingress protection for safe operation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 3P 6kA C-63A 3M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
