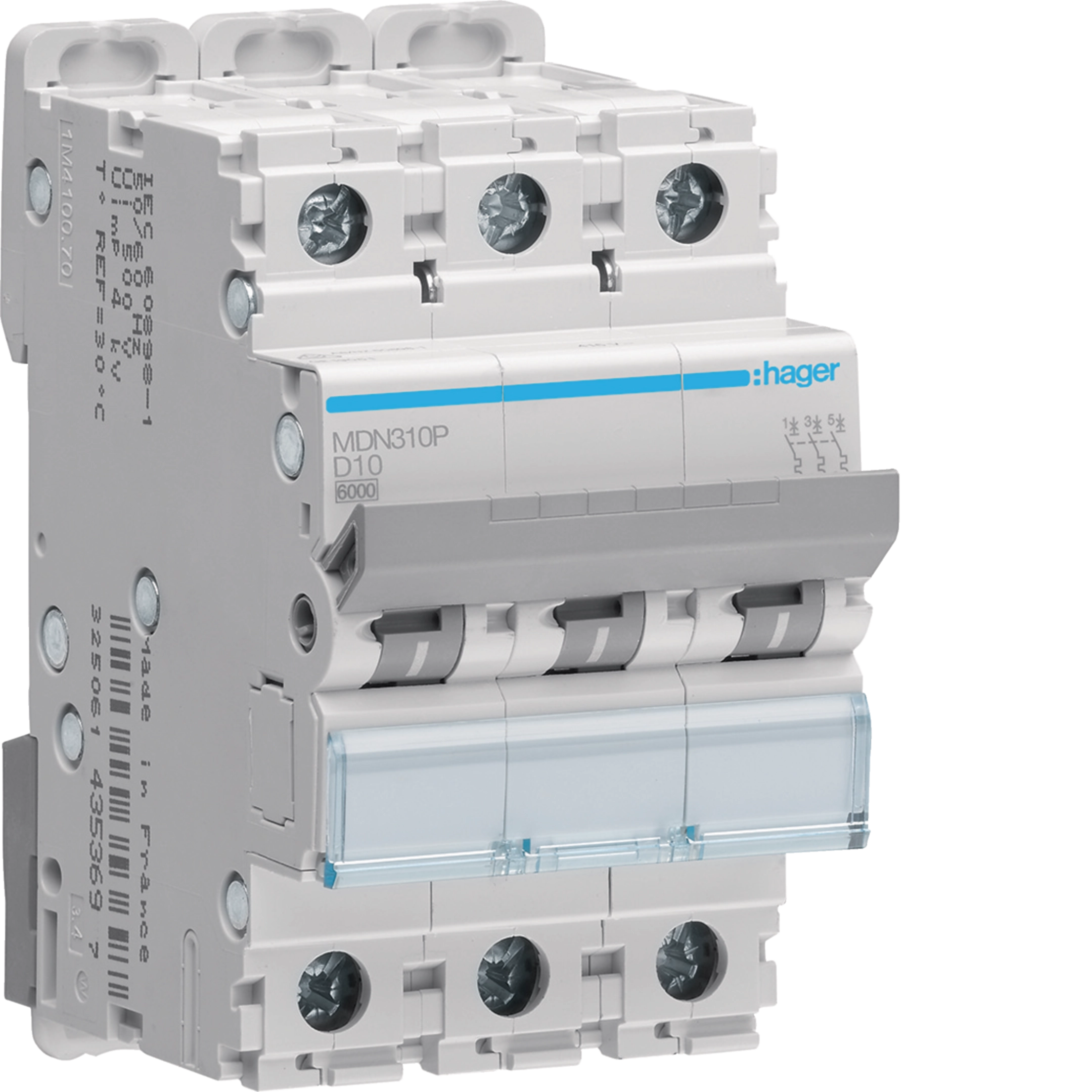

Product Name/Title: MCB 3P 6kA D-10A 3M
Brand: Hager
SKU: MDN310P
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Rated operational voltage: 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50-60 Hz
- Ingress Protection (IP) class: IP20
- Operating temperature range: -25 to 70 °C
- Nominal tightening torque: 2.80 Nm
- Dimensions (H x L x W): 84.6mm x 70mm x 52.5mm
- Weight: 0.5 kg
- 3-pole miniature circuit breaker with a breaking capacity of 6 kA.
- Rated current of 10 A with a wide operational temperature range.
- Screw terminal connections for both flexible and solid conductors.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
- Complies with AS/NZS 3000 for electrical installations.
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
2 years warranty against manufacturing defects.
The Hager MCB 3P 6kA D-10A 3M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
