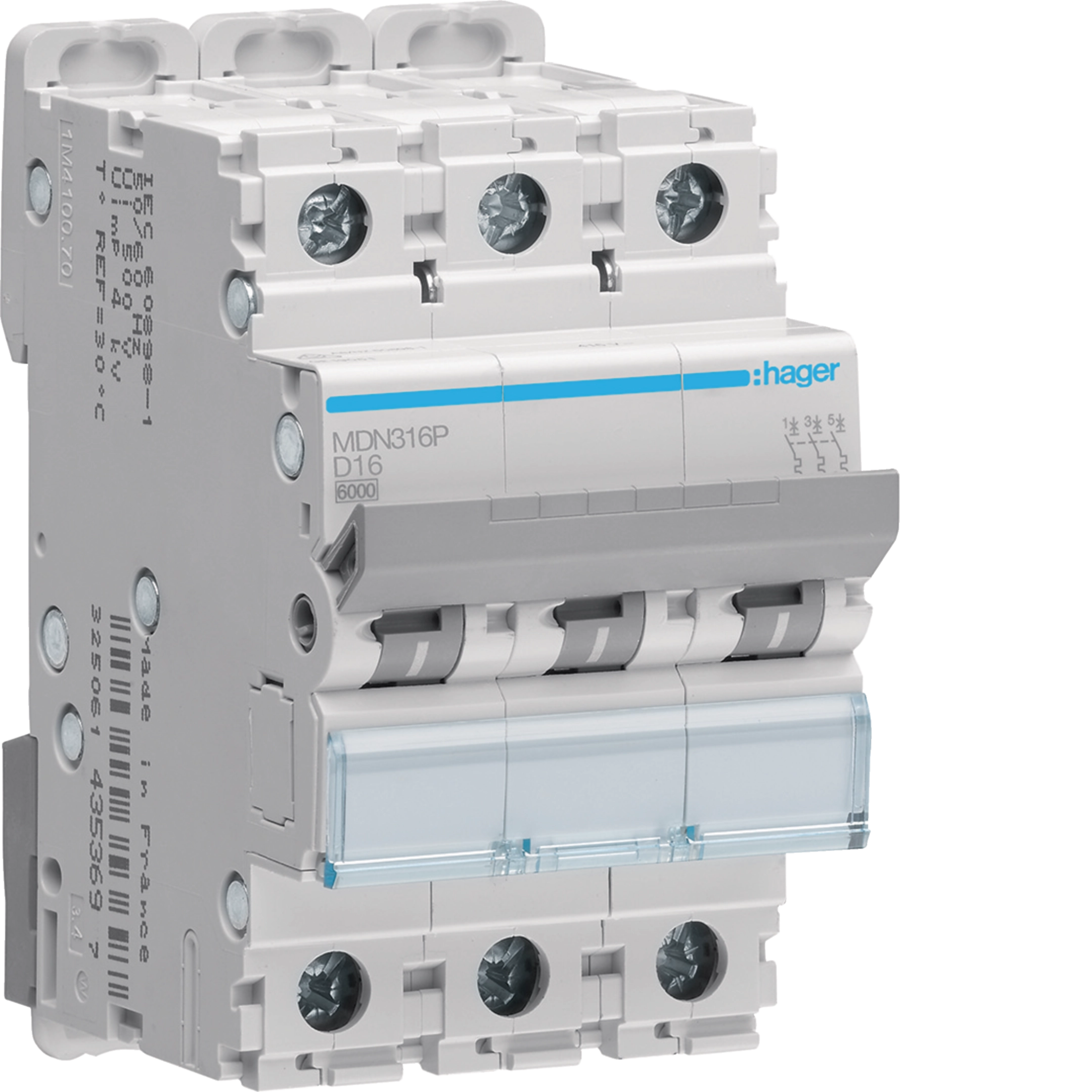

Product Name/Title: MCB 3P 6kA D-16A 3M
Brand: Hager
SKU: MDN316P
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Rated operational voltage: 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50-60 Hz
- Number of modules: 3
- Type of pole: 3P
- Nominal tightening torque: 2.80 Nm
- Operating temperature: -25°C to 70°C
- Dimensions (H x L x W): 84.6mm x 70mm x 52.5mm
- Weight: 0.5 kg
- Rated current of 16 A with a breaking capacity of 6 kA.
- Suitable for use in a wide range of temperatures from -25°C to 70°C.
- IP20 ingress protection rating.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, electrical panels
- Commercial: Offices, retail spaces, industrial applications
- Complies with AS/NZS 60898 for circuit breakers.
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
2 years warranty against manufacturing defects.
The Hager MCB 3P 6kA D-16A 3M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
