MDN325P

MCB 3P 6kA D-25A 3M


$189.70 List price: $242.60
+

Weight: 0.500 kg

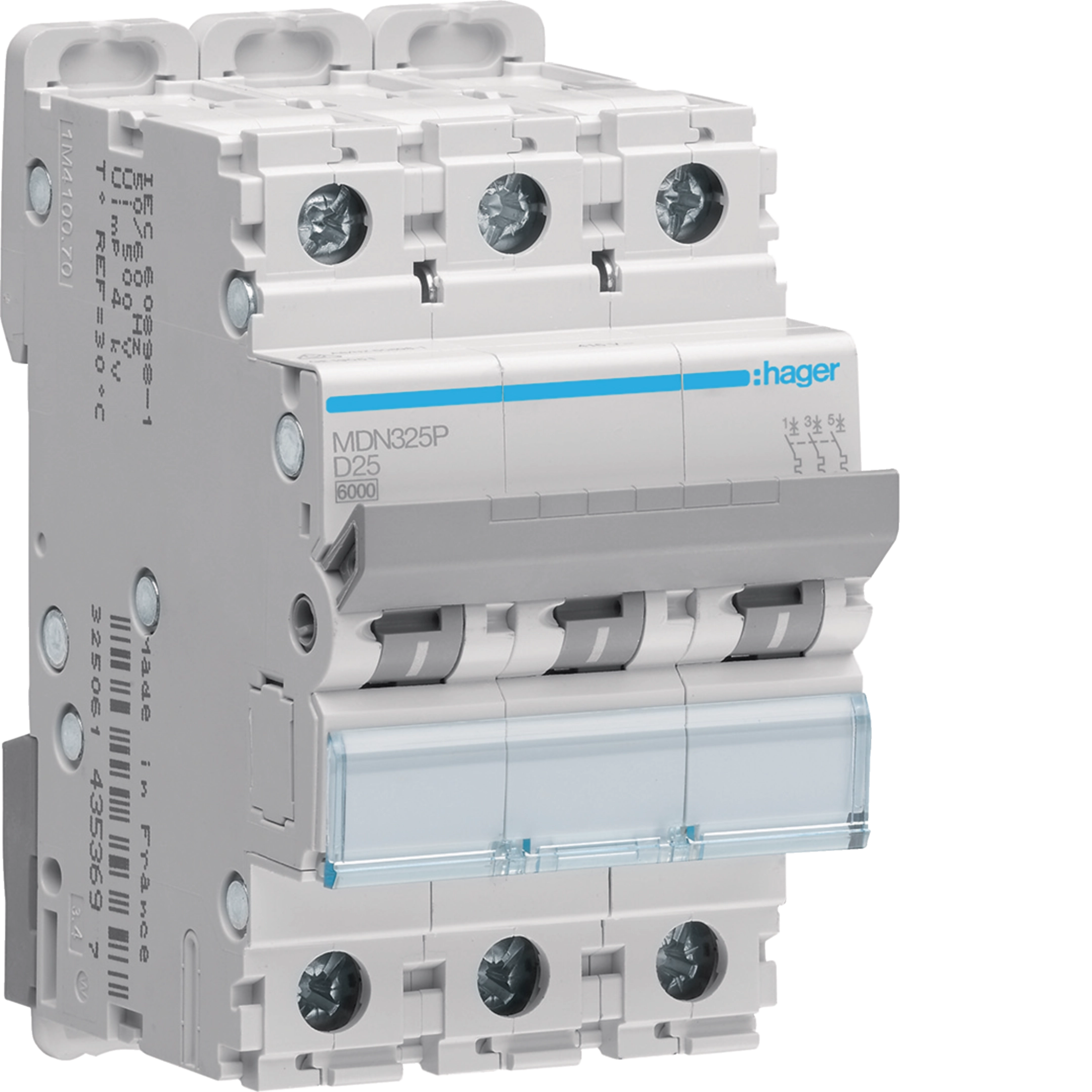

Product Name/Title: MCB 3P 6kA D-25A 3M

Brand: Hager

SKU: MDN325P

Alternatively Known As: Miniature Circuit Breaker, MCB, 3 Pole Circuit Breaker

Technical Specifications
  • Rated current: 25A
  • Rated operational voltage: 415V
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 6000V
  • Frequency: 50-60Hz
  • Ingress Protection (IP) class: IP20
  • Operating temperature: -25°C to 70°C
  • Dimensions (H x L x W): 84.6mm x 70mm x 52.5mm
  • Weight: 0.5 kg
Key Features
  • 3-pole miniature circuit breaker with a rated current of 25A.
  • Rated short-circuit breaking capacity of 6kA.
  • Wide operating temperature range from -25°C to 70°C.
  • IP20 ingress protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 3P 6kA D-25A 3M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
