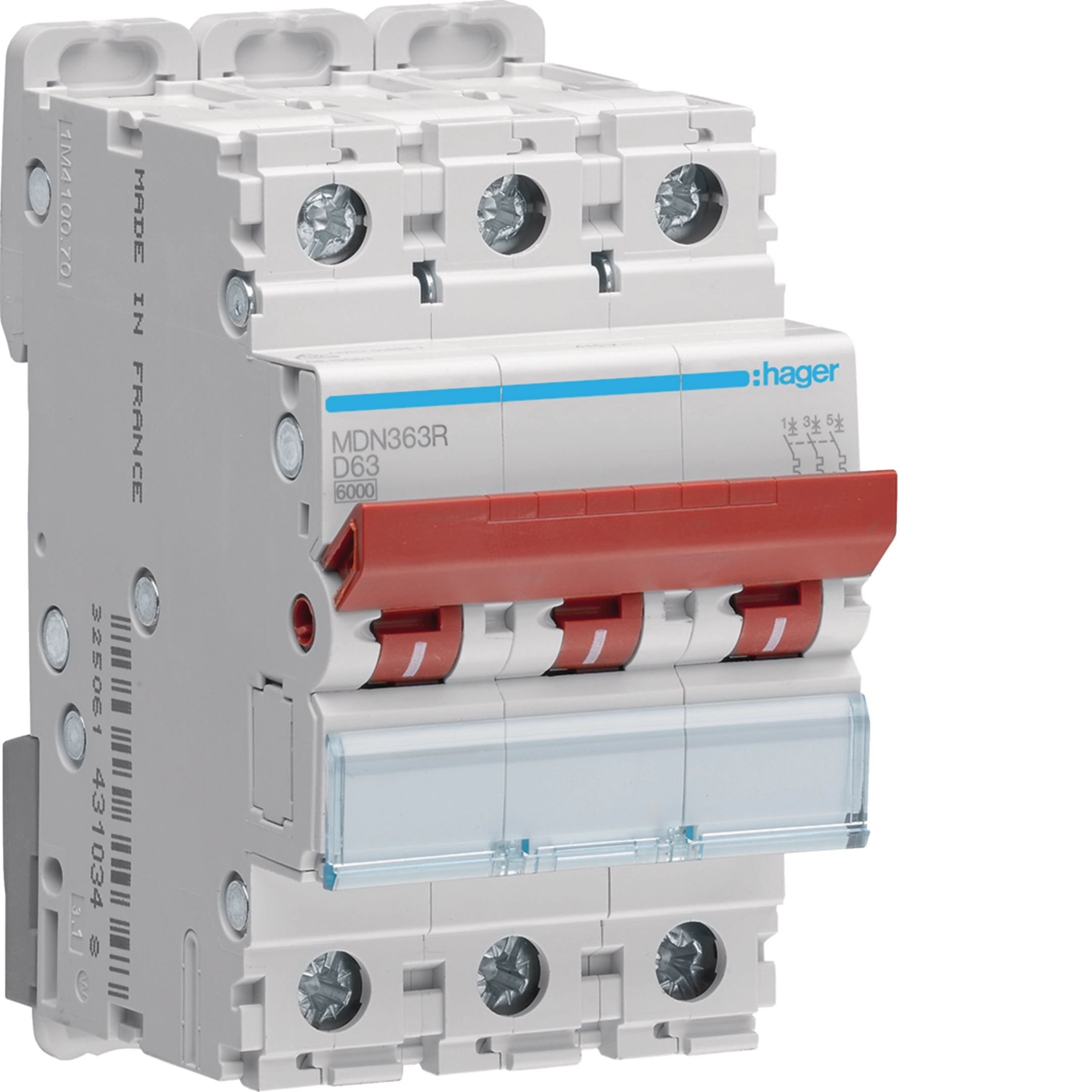

Product Name/Title: MCB 3P 6kA D-63A 3M
Brand: Hager
SKU: MDN363R
Alternatively Known As: Miniature Circuit Breaker, MCB, 3 Phase Circuit Breaker
- Rated operational voltage: 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50-60 Hz
- Ingress Protection (IP) class: IP20
- Operating temperature: -25 to 70 °C
- Total power loss under IN: 19.90 W
- Dimensions (H x L x W): 84.6mm x 70mm x 52.5mm
- Weight: 0.5 kg
- Rated current of 63 A with a breaking capacity of 6 kA.
- Suitable for 3-phase applications with a compact design.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
- Complies with AS/NZS 3000 for electrical installations.
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve energy efficiency and reduce carbon footprint.
2 years warranty against manufacturing defects.
The Hager MCB 3P 6kA D-63A 3M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
