MDN306P

MCB 3P 6kA D-6A 3M


$189.70 List price: $242.60
+

Weight: 0.500 kg

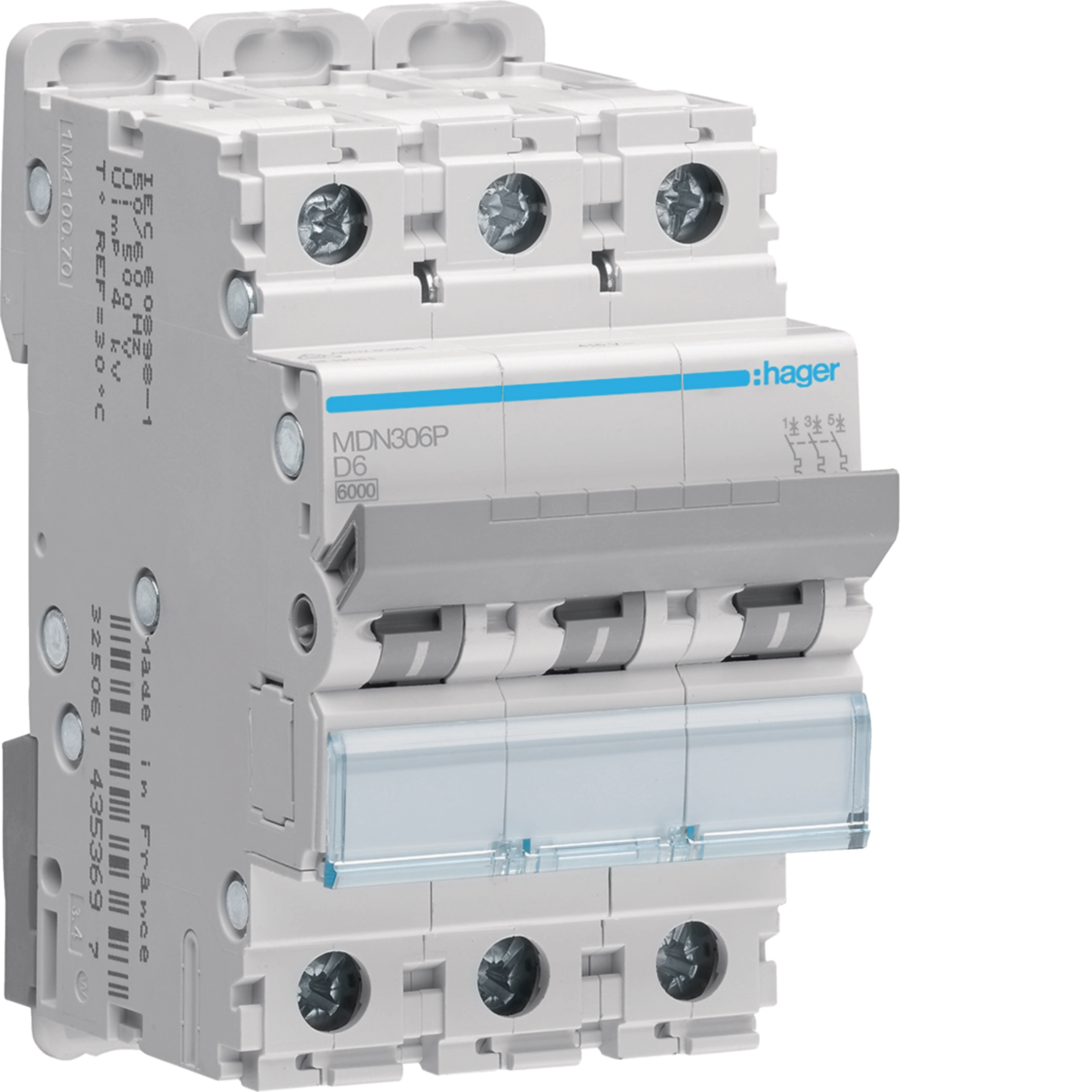

Product Name/Title: MCB 3P 6kA D-6A 3M

Brand: Hager

SKU: MDN306P

Alternatively Known As: Miniature Circuit Breaker, MCB, 3 Phase Circuit Breaker

Technical Specifications
  • Rated current: 6 A
  • Rated operational voltage: 415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50-60 Hz
  • Nominal tightening torque: 2.80 Nm
  • Connection: Screw terminal for both flexible and massive conductors
  • Dimensions (H x L x W): 84.6mm x 70mm x 52.5mm
  • Weight: 0.5 kg
Key Features
  • 3-pole design for three-phase circuits.
  • Rated short-circuit breaking capacity of 6 kA.
  • Wide operating temperature range from -25°C to 70°C.
  • IP20 ingress protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, ensuring reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 3P 6kA D-6A 3M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
