HMD499T

MCB 4P 15kA D-125A 6M


$1,390.30 List price: $1,777.70
+

Weight: 0.500 kg

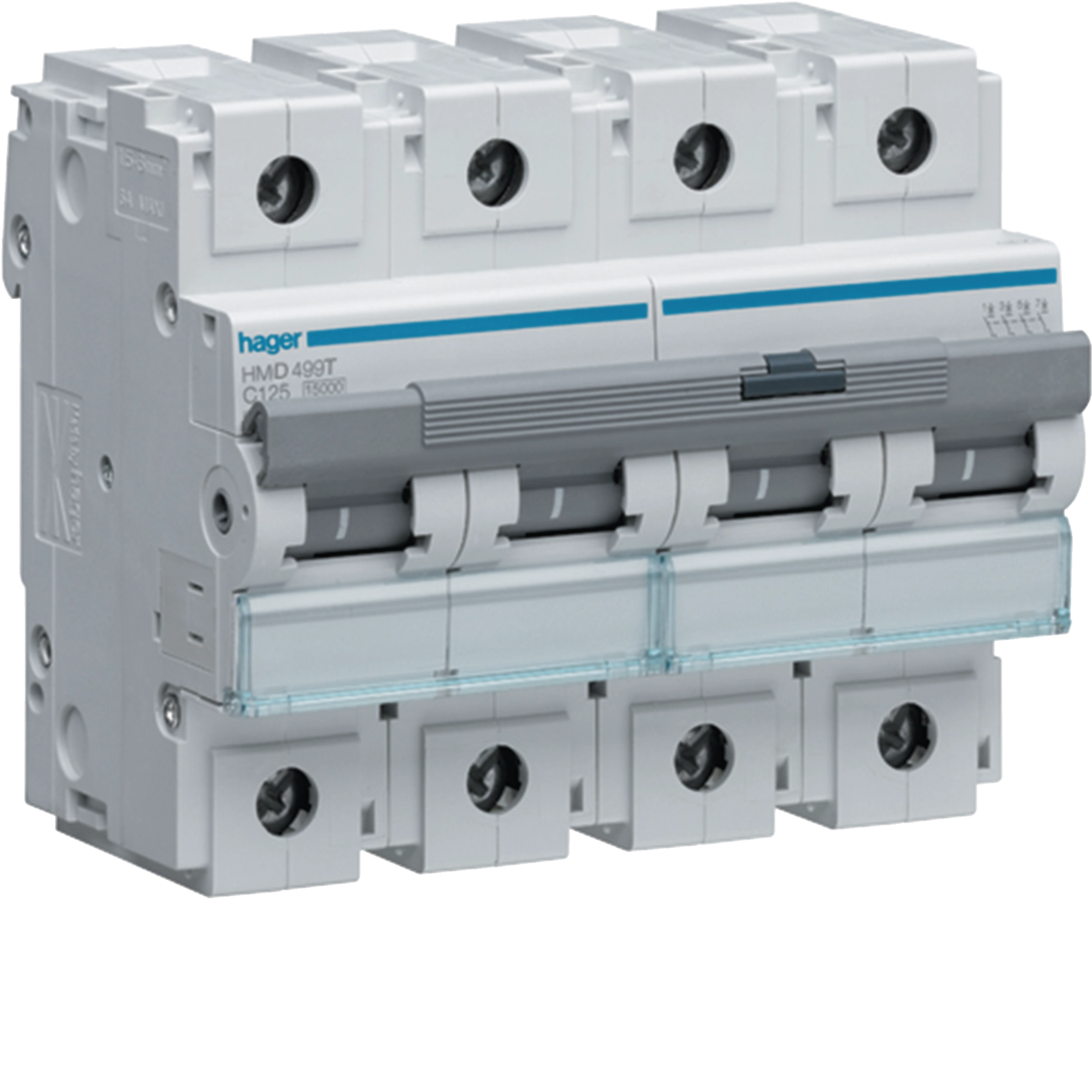

Product Name/Title: MCB 4P 15kA D-125A 6M

Brand: Hager

SKU: HMD499T

Alternatively Known As: Miniature Circuit Breaker, MCB, 4 Pole Circuit Breaker, HMD499T

Technical Specifications
  • Rated operational voltage: 415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Rated current: 125 A
  • Electric endurance: 4000 cycles
  • Mechanical operations: 20000 cycles
  • Cross-section for massive conductors: 1 - 70 mm²
  • Cross-section for flexible conductors: 1 - 50 mm²
  • Dimensions (H x L x W): 90mm x 70mm x 106mm
  • Weight: 0.5 kg
Key Features
  • 4-pole design for three-phase systems
  • Rated short-circuit breaking capacity of 15 kA
  • Nominal tightening torque of 3.5 - 5.0 Nm
  • Suitable for AC voltage supply of 415 V
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 4P 15kA D-125A 6M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
