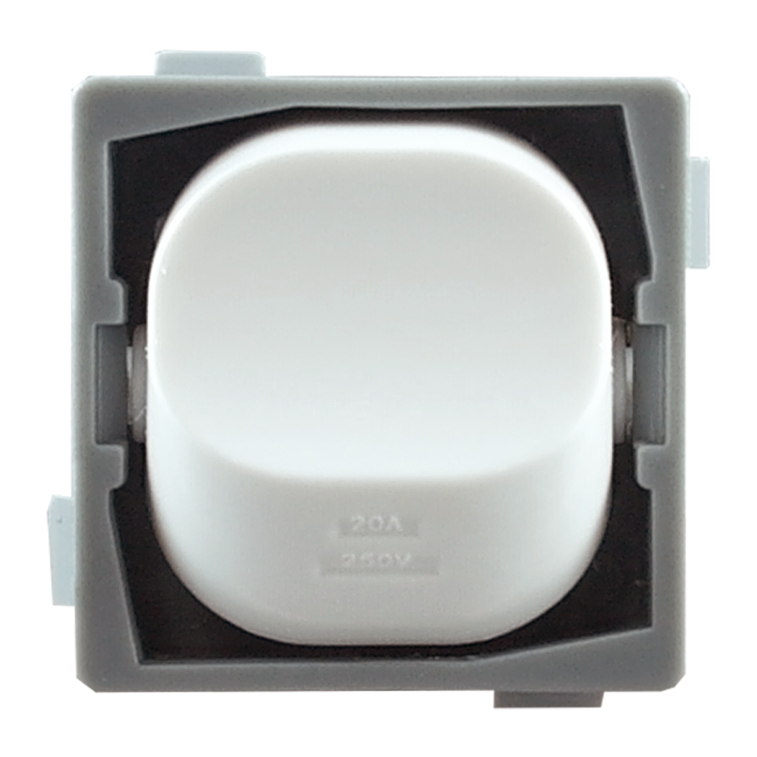

Product Name/Title: Mech 250V AC 20A 1/2 Way
Brand: Connected Switchgear
SKU: M2W20F
Alternatively Known As: 20A AC Mechanism, 1/2 Way Switch, Connected Switchgear Mechanism
Technical Specifications
- Product Code: M2W20F
- Voltage: 250V
- Current: 20AX
- Poles: 1 Pole
- Configuration: Vertical/Horizontal
- Available Colors: Black and White
- Dimensions (H x L x W): 22mm x 30mm x 22mm
- Weight: 0.2 kg
Key Features
- Rated at 240V AC 20AX with 1/2 way switching action.
- Manufactured from durable polycarbonate material.
- High percentage silver and nickel coating on switch contacts to prevent arcing.
- Solid brass terminal screws.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and offices
- Commercial: Retail and hospitality environments
Standards & Compliance
- Complies with AS/NZS 3133:2013+A1-2 and AS/NZS 3100:2017+A1-3 for safety and performance standards.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
5 years warranty against manufacturing defects, covering replacement and installation by an authorized electrician.
Available Now
The Mech 250V AC 20A 1/2 Way Switch is available now for immediate purchase. Ideal for residential and commercial applications.
