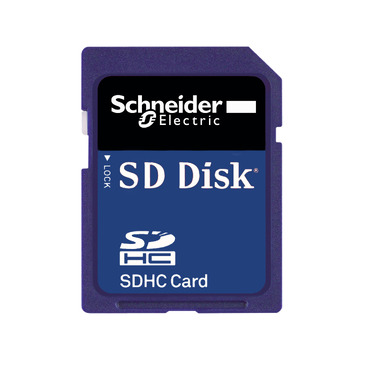

Product Name/Title: Modicon M221, Memory card, for M2xx controller
Brand: Clipsal
SKU: TMASD1
Alternatively Known As: Modicon Memory Card, M221 SD Card, Modicon M221 Backup Card
Technical Specifications
- Memory Type: Flash
- Data Retention Time: 10 years at 25 °C
- Number of Read/Write Cycles: 100,000
- MTBF Reliability: 3,000,000 hours
- Operating Temperature: -10 to 70 °C
- Storage Temperature: -25 to 85 °C
- Relative Humidity: 0 to 95% without condensation
- Electrostatic Discharge Resistance: 15 kV in air, 4 kV on contact
- Vibration Resistance: 1 gn
- Shock Resistance: 15 gn
- Dimensions (H x L x W): 1mm x 14.5mm x 12mm
- Weight: 0.027 kg
Key Features
- 256 MB capacity for data storage and application transfer.
- Compatible with Modicon M221, M241, and M251 controllers.
- Resistant to electrostatic discharge and vibration.
Professional Installation Requirements
- No professional installation required; user-friendly for direct application.
Applications
- Industrial: Used with Modicon M221 and M221 Book logic controllers for application backup and transfer.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Complies with China RoHS regulations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Modicon M221 Memory Card is available now for immediate purchase. Ideal for industrial applications requiring reliable data transfer and backup.
