TM3DI8G

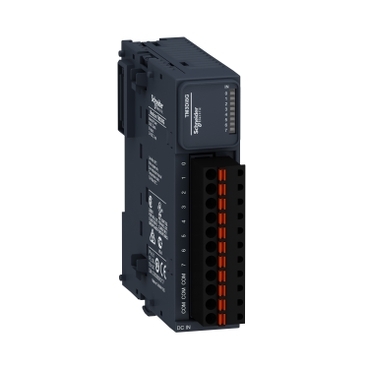

Modicon TM3, Discrete input module, 8 inputs (spring) 24 VDC


$326.40 List price: $489.60
+

Weight: 0.085 kg

Product Name/Title: Modicon TM3, Discrete input module, 8 inputs (spring) 24 VDC

Brand: Clipsal

SKU: TM3DI8G

Alternatively Known As: Modicon TM3 Input Module, Discrete Input Module, 24 VDC Input Module

Technical Specifications
  • Discrete input voltage: 24 VDC
  • Discrete input current: 7 mA per input
  • Response time: 4 ms (turn-on and turn-off)
  • IP Rating: IP20 with protective cover
  • Operating temperature: -10...35 °C vertical, -10...55 °C horizontal
  • Storage temperature: -25...70 °C
  • Relative humidity: 10...95% without condensation
  • Electrical connection: 11 x 2.5 mm² removable spring terminal block
  • Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
  • Weight: 0.085 kg
Key Features
  • 8 discrete inputs conforming to IEC 61131-2 Type 1.
  • Local signalling with 1 LED per channel for input status.
  • Compatible with Modicon M241, M251, M221, and M262.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation systems
  • Control systems for machinery
  • Building management systems
Standards & Compliance
  • Complies with IEC 61131-2 for safety and performance standards.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • PVC free.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete Input Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DI8G (TM3DI8G, 384 Kb) [Download]
