TM3DQ16UK

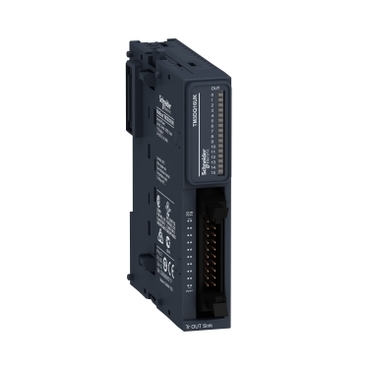

Modicon TM3, Discrete output module, 16 outputs transistor NPN (HE10)


$371.00 List price: $556.50
+

Weight: 0.111 kg

Product Name/Title: Modicon TM3, Discrete output module, 16 outputs transistor NPN (HE10)

Brand: Clipsal

SKU: TM3DQ16UK

Alternatively Known As: Modicon TM3 Output Module, TM3 Discrete Output Module, Clipsal TM3 Module

Technical Specifications
  • Discrete output voltage: 24 V DC
  • Discrete output current: 100 mA
  • Response time: 450 µs
  • IP Rating: IP20
  • Operating temperature: -10...35 °C (vertical), -10...55 °C (horizontal)
  • Storage temperature: -25...70 °C
  • Relative humidity: 10...95 % without condensation
  • Electrical connection: HE-10 connector
  • Dimensions (H x L x W): 90mm x 81.3mm x 21.4mm
  • Weight: 0.111 kg
Key Features
  • 16 discrete outputs with transistor NPN logic.
  • Local signaling with 1 LED per channel for output status.
  • Compatible with Modicon M241, M251, M221, and M262.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation systems
  • Control systems for machinery
  • Building management systems
Standards & Compliance
  • Complies with IEC 61131-2 for safety and performance standards.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • PVC free.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Discrete Output Module is available now for immediate purchase. Ideal for industrial automation applications.
