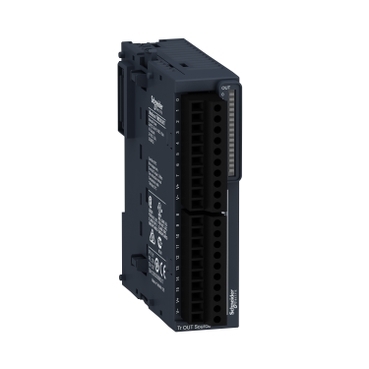

Product Name/Title: Modicon TM3, Discrete output module, 16 outputs transistor PNP (screw)
Brand: Clipsal
SKU: TM3DQ16T
Alternatively Known As: Modicon TM3 Output Module, TM3 Discrete Output Module, PNP Output Module
- Discrete output type: transistor
- Discrete output voltage: 24 V DC
- Discrete output current: 500 mA
- Response time: 450 µs
- IP degree of protection: IP20
- Operating temperature: -10...35 °C vertical, -10...55 °C horizontal
- Relative humidity: 10...95 % without condensation
- Vibration resistance: 3.5 mm at 5-8.4 Hz
- Shock resistance: 15 gn for 11 ms
- Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
- Weight: 0.11 kg
- 16 discrete outputs with transistor PNP logic
- Local signaling with 1 LED per channel for output status
- Compatible with Modicon M241, M251, M221, and M262
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial automation systems
- Control systems for machinery
- Building management systems
- Complies with IEC 61131-2 for safety and performance standards.
- Packaging made with recycled cardboard
- PVC free
1 year warranty against manufacturing defects.
The Clipsal Modicon TM3 Discrete Output Module is available now for immediate purchase. Ideal for industrial automation applications.
