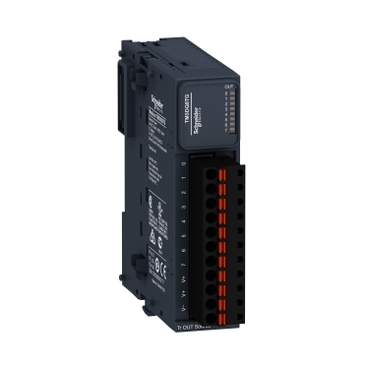

Product Name/Title: Modicon TM3, Discrete output module, 8 outputs transistor PNP (spring)
Brand: Clipsal
SKU: TM3DQ8TG
Alternatively Known As: Modicon TM3 Output Module, TM3 Discrete Output Module, PNP Output Module
- Discrete output voltage: 24 V DC
- Discrete output current: 500 mA
- Response time: 450 µs
- IP Rating: IP20
- Operating temperature: -10...35 °C (vertical), -10...55 °C (horizontal)
- Relative humidity: 10...95% without condensation
- Electrical connection: 11 x 2.5 mm² removable spring terminal block
- Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
- Weight: 0.76 kg
- 8 discrete outputs with transistor PNP logic
- Local signaling with 1 LED per channel for output status
- Compatible with Modicon M241, M251, M221, and M262
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial automation systems
- Control systems for machinery
- Building management systems
- Complies with IEC 61131-2 for safety and performance standards.
- Packaging made with recycled cardboard
- PVC free
Standard warranty applies.
The Clipsal Modicon TM3 Discrete Output Module is available now for immediate purchase. Ideal for industrial automation applications.
