TM3SAC5R

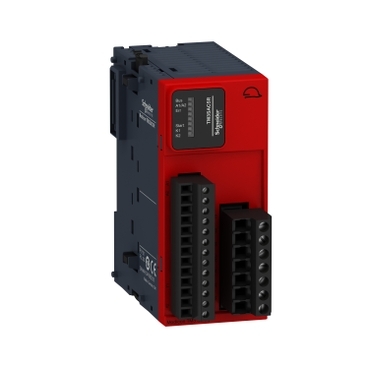

Modicon TM3, Safety module, 1 Function, Cat 3 PL d/SIL CL2 (screw) 24 VDC


$695.40 List price: $1,043.10
+

Weight: 0.190 kg

Product Name/Title: Modicon TM3, Safety module, 1 Function, Cat 3 PL d/SIL CL2 (screw) 24 VDC

Brand: Clipsal

SKU: TM3SAC5R

Alternatively Known As: TM3 Safety Module, Emergency Stop Module, Safety Relay Module

Technical Specifications
  • Power consumption: 3.6 W at 24 V DC.
  • IP Rating: IP20.
  • Operating temperature: -10 to 55 °C.
  • Relative humidity: 10 to 95 % without condensation.
  • Safety level: PL d/category 3, SIL CL2.
  • Dimensions (H x L x W): 94mm x 73mm x 43.7mm
  • Weight: 0.19 kg
Key Features
  • 1-channel and 2-channel emergency stop monitoring.
  • Monitoring of movable guards with automatic start.
  • Captive screw clamp terminals for easy connections.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Emergency stop and switch monitoring in manufacturing and automation environments.
Standards & Compliance
  • Complies with ISO 13849-1:2008 and IEC 62061:2005.
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Safety Module is available now for immediate purchase. Ideal for industrial applications requiring safety monitoring.

TM3SAC5R (TM3SAC5R, 411 Kb) [Download]
