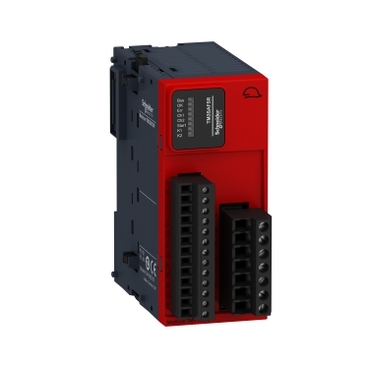

TM3SAF5R

Modicon TM3, Safety module, 1 Function, Cat 4 PL e/SIL CL3 (screw) 24 VDC


$785.30 List price: $1,178.00
+

Weight: 0.190 kg

Product Name/Title: Modicon TM3, Safety module, 1 Function, Cat 4 PL e/SIL CL3 (screw) 24 VDC

Brand: Clipsal

SKU: TM3SAF5R

Alternatively Known As: TM3 Safety Module, Modicon Safety Module, Emergency Stop Module

Technical Specifications
  • Power consumption: 3.6 W at 24 V DC
  • Input protection type: internal, electronic
  • Output type: relay instantaneous opening, 3 NO circuits
  • Maximum switching voltage: 230 V AC, 24 V DC
  • Rated supply voltage: 24 V DC
  • IP degree of protection: IP20
  • Ambient air temperature for operation: -10...55 °C
  • Dimensions (H x L x W): 94mm x 73mm x 43.7mm
  • Weight: 0.19 kg
Key Features
  • Emergency stop monitoring with 1-channel and 2-channel wiring.
  • Monitoring of movable guards with automatic start.
  • Captive screw clamp terminals for easy connections.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal safety.
Applications
  • Industrial: Emergency stop and switch monitoring in manufacturing and automation environments.
Standards & Compliance
  • Complies with ISO 13849-1:2008 and IEC 62061:2005 for safety standards.
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Clipsal Modicon TM3 Safety Module is available now for immediate purchase. Ideal for industrial applications requiring high safety standards.

TM3SAF5R (TM3SAF5R, 420 Kb) [Download]
