Trade Discount 33%
TM3SAF5RG

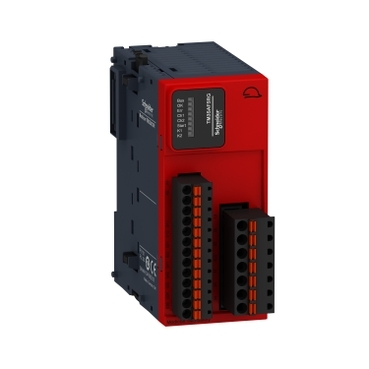

Modicon TM3, Safety module, 1 Function, Cat 4 PL e/SIL CL3 (spring) 24 VDC


$785.30 List price: $1,178.00
+

Weight: 0.190 kg

Product Name/Title: Modicon TM3, Safety module, 1 Function, Cat 4 PL e/SIL CL3 (spring) 24 VDC

Brand: Clipsal

SKU: TM3SAF5RG

Alternatively Known As: TM3 Safety Module, Modicon Safety Module, Emergency Stop Module

Technical Specifications
  • Power consumption: 3.6 W at 24 V DC
  • Safety level: PL e/category 4 conforming to ISO 13849-1:2008
  • SILCL 3 conforming to IEC 62061:2005
  • IP Rating: IP20
  • Operating temperature: -10...55 °C
  • Storage temperature: -25...70 °C
  • Relative humidity: 10...95 % without condensation
  • Dimensions (H x L x W): 94mm x 73mm x 43.7mm
  • Weight: 0.19 kg
Key Features
  • 1-channel and 2-channel emergency stop monitoring
  • Monitoring of movable guards with automatic start
  • Captive spring terminals for easy connections
  • Local signaling with 8 LEDs (green/red)
Professional Installation Requirements
  • Professional installation is recommended for optimal safety.
Applications
  • Industrial: Emergency stop and switch monitoring
Standards & Compliance
  • Complies with ISO 13849-1:2008 and IEC 62061:2005
Environmental Benefits
  • Packaging made with recycled cardboard
  • PVC free
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Safety Module is available now for immediate purchase. Ideal for industrial applications requiring emergency stop and switch monitoring.

TM3SAF5RG (TM3SAF5RG, 422 Kb) [Download]
