TM3SAFL5R

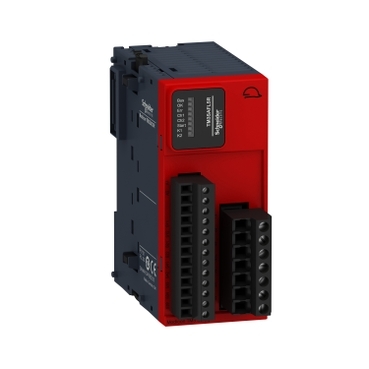

Modicon TM3, Safety module, 2 Function, Cat 3 PL d/SIL CL2 (screw) 24 VDC


$832.60 List price: $1,248.90
+

Weight: 0.190 kg

Product Name/Title: Modicon TM3, Safety module, 2 Function, Cat 3 PL d/SIL CL2 (screw) 24 VDC

Brand: Clipsal

SKU: TM3SAFL5R

Alternatively Known As: TM3 Safety Module, Modicon Safety Module, Safety Light Curtain Monitor

Technical Specifications
  • Power consumption: 3.6 W at 24 V DC
  • IP Rating: IP20
  • Operating temperature: -10 to 55 °C
  • Storage temperature: -25 to 70 °C
  • Relative humidity: 10 to 95% without condensation
  • Safety level: PL d/category 3, SIL CL 2
  • Maximum switching voltage: 230 V AC, 24 V DC
  • Dimensions (H x L x W): 94mm x 73mm x 43.7mm
  • Weight: 0.19 kg
Key Features
  • Emergency stop monitoring with 2-channel wiring
  • Monitoring of movable guard with 2 switches and automatic start
  • Monitoring of electro-sensitive protection equipment (ESPE)
  • Captive screw clamp terminals for easy connections
  • Local signaling with 8 LEDs (green/red)
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal safety.
Applications
  • Industrial: Emergency stop monitoring, switch and safety light curtain monitoring
Standards & Compliance
  • Complies with ISO 13849-1:2008 and IEC 62061:2005 for safety standards.
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

Standard warranty applies.

Available Now

The Modicon TM3 Safety Module is available now for immediate purchase. Ideal for industrial applications requiring safety monitoring.

TM3SAFL5R (TM3SAFL5R, 430 Kb) [Download]
