TM3SAK6RG

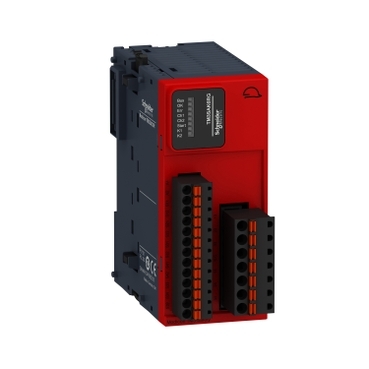

Modicon TM3, Safety module, 3 Function, Cat 4 PL e/SIL CL3 (spring) 24 VDC


$878.60 List price: $1,317.90
+

Weight: 0.236 kg

Product Name/Title: Modicon TM3, Safety module, 3 Function, Cat 4 PL e/SIL CL3 (spring) 24 VDC

Brand: Clipsal

SKU: TM3SAK6RG

Alternatively Known As: TM3 Safety Module, Modicon Safety Module, Emergency Stop Module

Technical Specifications
  • Power consumption: 3.6 W at 24 V DC
  • Functionality: 3 NO relay outputs for safety circuits
  • Input protection: Internal electronic protection
  • Rated supply voltage: 24 V DC
  • IP Rating: IP20
  • Operating temperature: -10 to 55 °C
  • Dimensions (H x L x W): 94mm x 73mm x 43.7mm
  • Weight: 0.236 kg
Key Features
  • Emergency stop monitoring with 1-channel and 2-channel wiring
  • Monitoring of movable guards and proximity sensors
  • Compatible with safety light curtains and sensing mats
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Emergency stop monitoring, safety light curtain monitoring, movable guard monitoring
Standards & Compliance
  • Complies with ISO 13849-1:2008 and IEC 62061:2005 for safety standards.
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Safety Module is available now for immediate purchase. Ideal for industrial applications requiring high safety standards.
