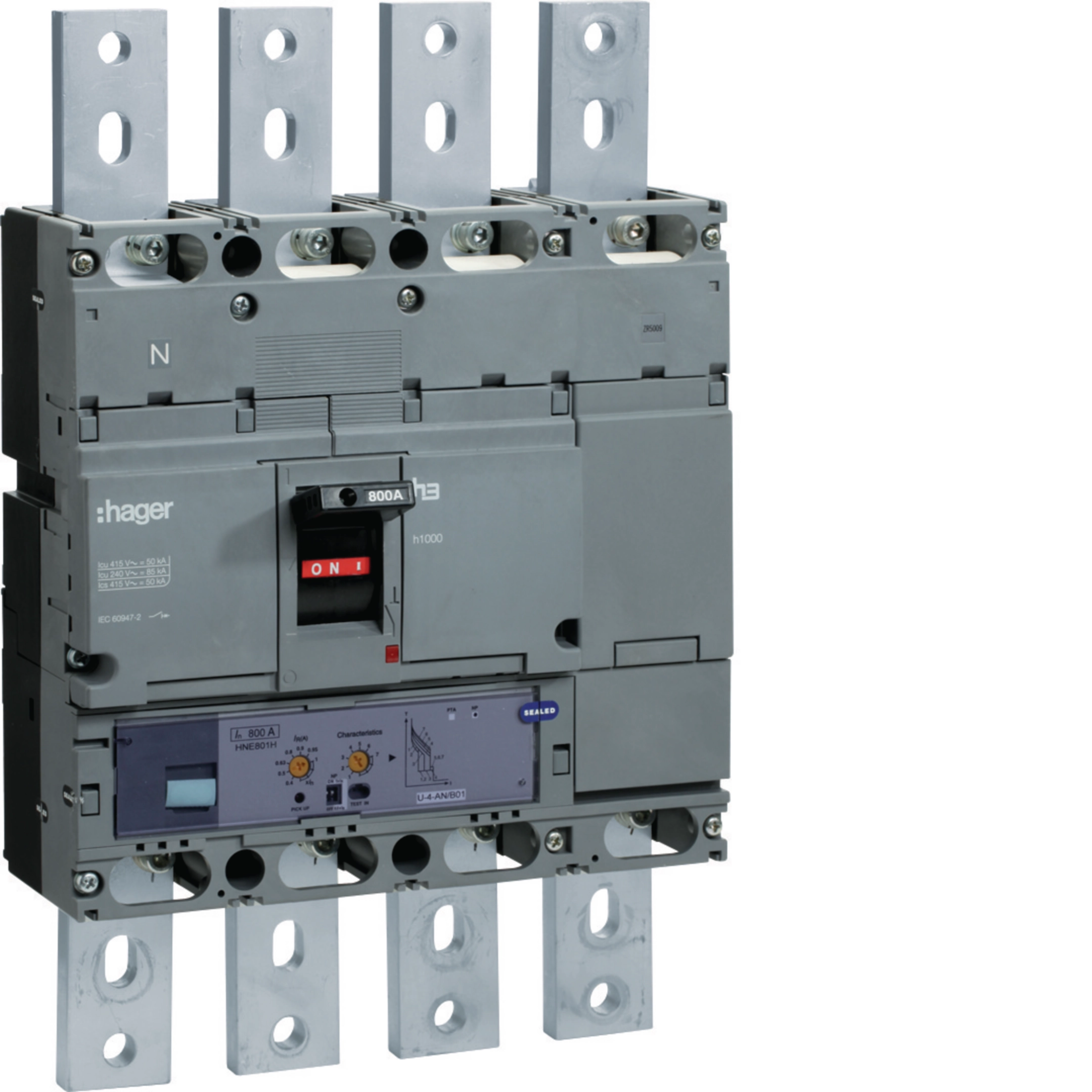

Product Name/Title: Moulded Case Circuit Breaker h1000 4P 70kA 800A LSI
Brand: Hager
SKU: HEE801H
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, H1000 Circuit Breaker
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 70 kA
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 800 V
- Rated operational voltage Ue: 220 - 690 V
- Magnetic protection trip time: 100 - 200 ms
- Total power loss under IN: 153.60 W
- Electric endurance in number of cycles: 1000
- Operating temperature: -25 - 70 °C
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- Rated current of 800 A with a breaking capacity of 70 kA under 415 V AC.
- Fast tripping response time of 10 ms for enhanced safety.
- IP4X ingress protection for reliable performance in various environments.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in office buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 60947-2 for safety and performance standards.
Environmental Benefits
- Designed to reduce carbon footprint and improve environmental performance.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker H1000 4P 70kA 800A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
