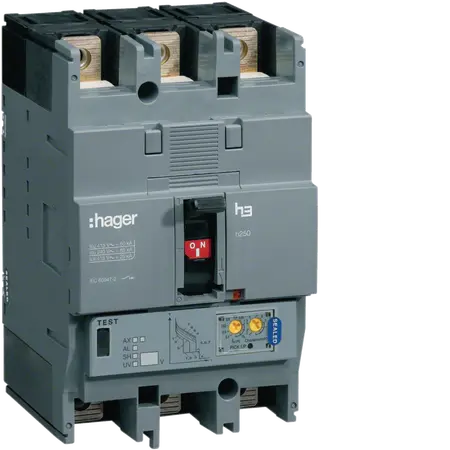

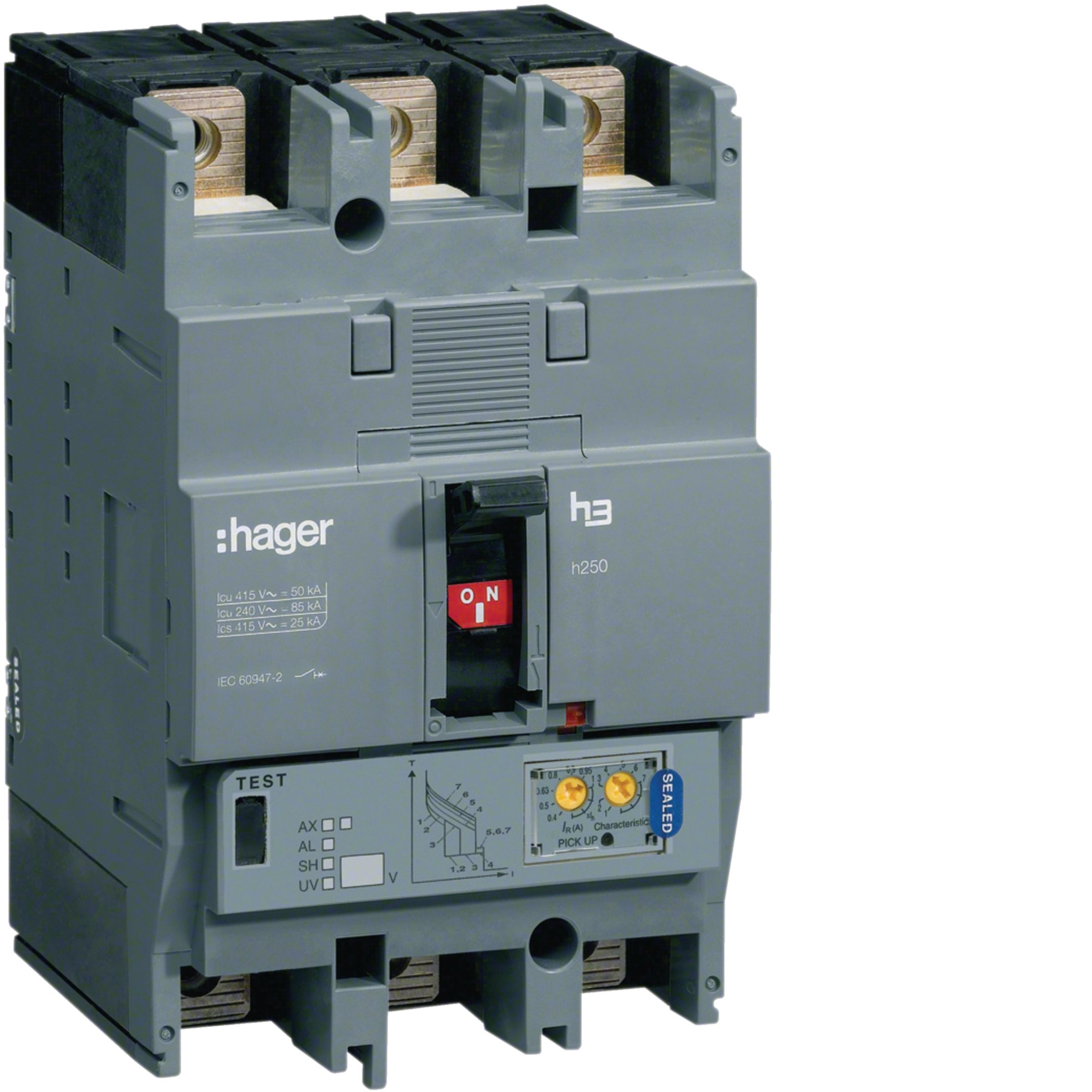

Product Name/Title: Moulded Case Circuit Breaker h250 3P 50kA 125A LSI
Brand: Hager
SKU: HNC125H
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 125A
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 50 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Operating temperature: -25 to 70 °C
- Ingress Protection (IP) class: IP4X
- Total power loss under IN: 18.30 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Nominal tightening torque: 12 - 12 Nm
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 5 kg
Key Features
- Rated current of 125 A with a short-circuit breaking capacity of 50 kA.
- Three-pole design suitable for various applications.
- LSI trip unit for enhanced protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- Residential: Main electrical protection in homes
Standards & Compliance
- Complies with AS/NZS 60947 for electrical equipment safety standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker h250 3P 50kA 125A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
