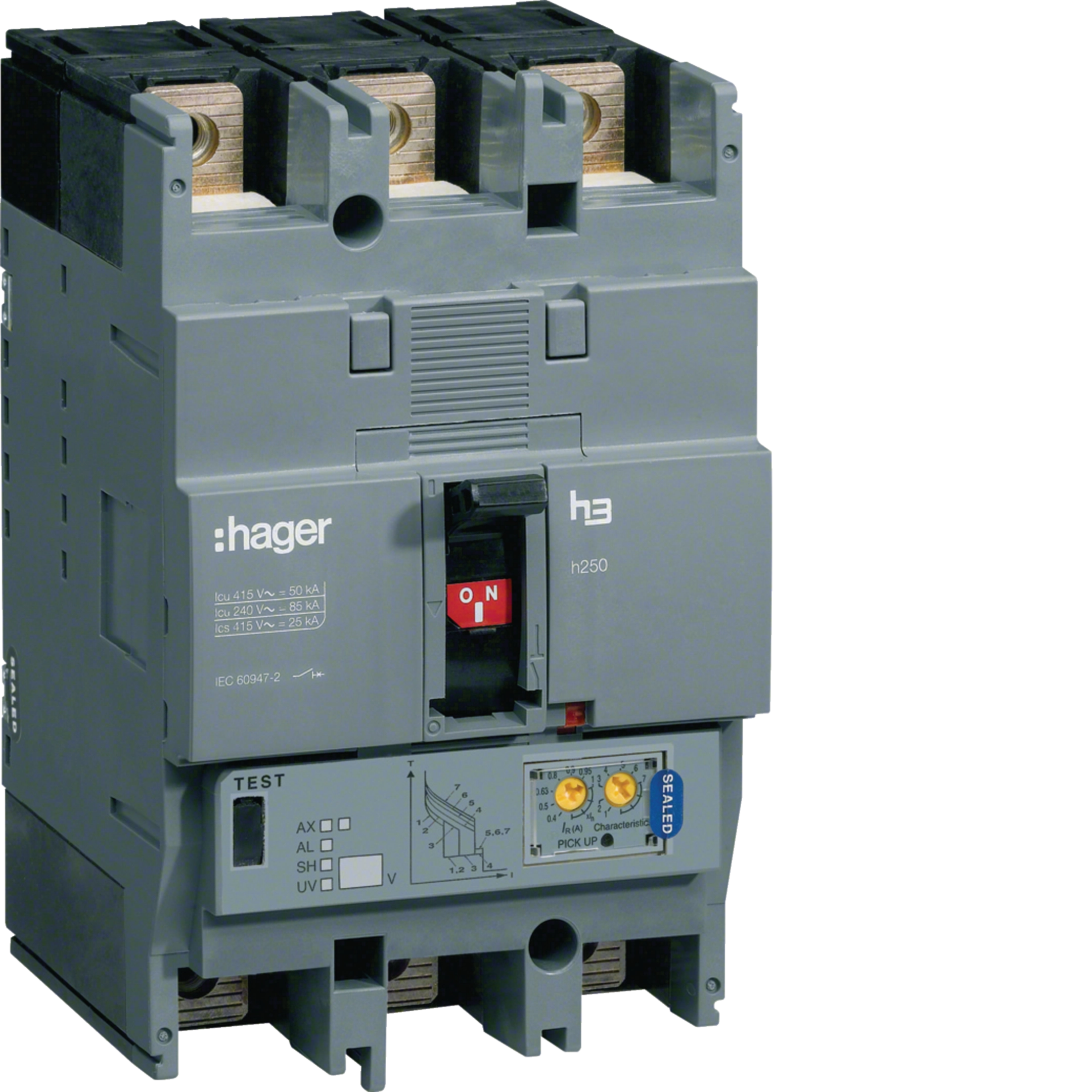

Product Name/Title: Moulded Case Circuit Breaker h250 3P 70kA 125A LSI
Brand: Hager
SKU: HEC125H
Alternatively Known As: MCCB, Circuit Breaker, Moulded Case Breaker
Technical Specifications
- Rated current: 125 A
- Short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Number of poles: 3
- Frequency: 50 - 60 Hz
- Rated impulse withstand voltage Uimp: 8000 V
- Rated insulation voltage Ui: 800 V
- Magnetic protection trip time: 100 - 200 ms
- Total power loss under IN: 18.30 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Operating temperature: -25 - 70 °C
- Cross-section flexible conductor: 35 - 150 mm²
- Cross-section rigid conductor: 35 - 185 mm²
- Nominal tightening torque: 12 - 12 Nm
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 5 kg
Key Features
- Rated current of 125 A with a short-circuit breaking capacity of 70 kA.
- LSI trip unit for enhanced protection.
- IP4X ingress protection for reliable performance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- Residential: Main electrical protection in homes
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker H250 3P 70kA 125A LSI is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
