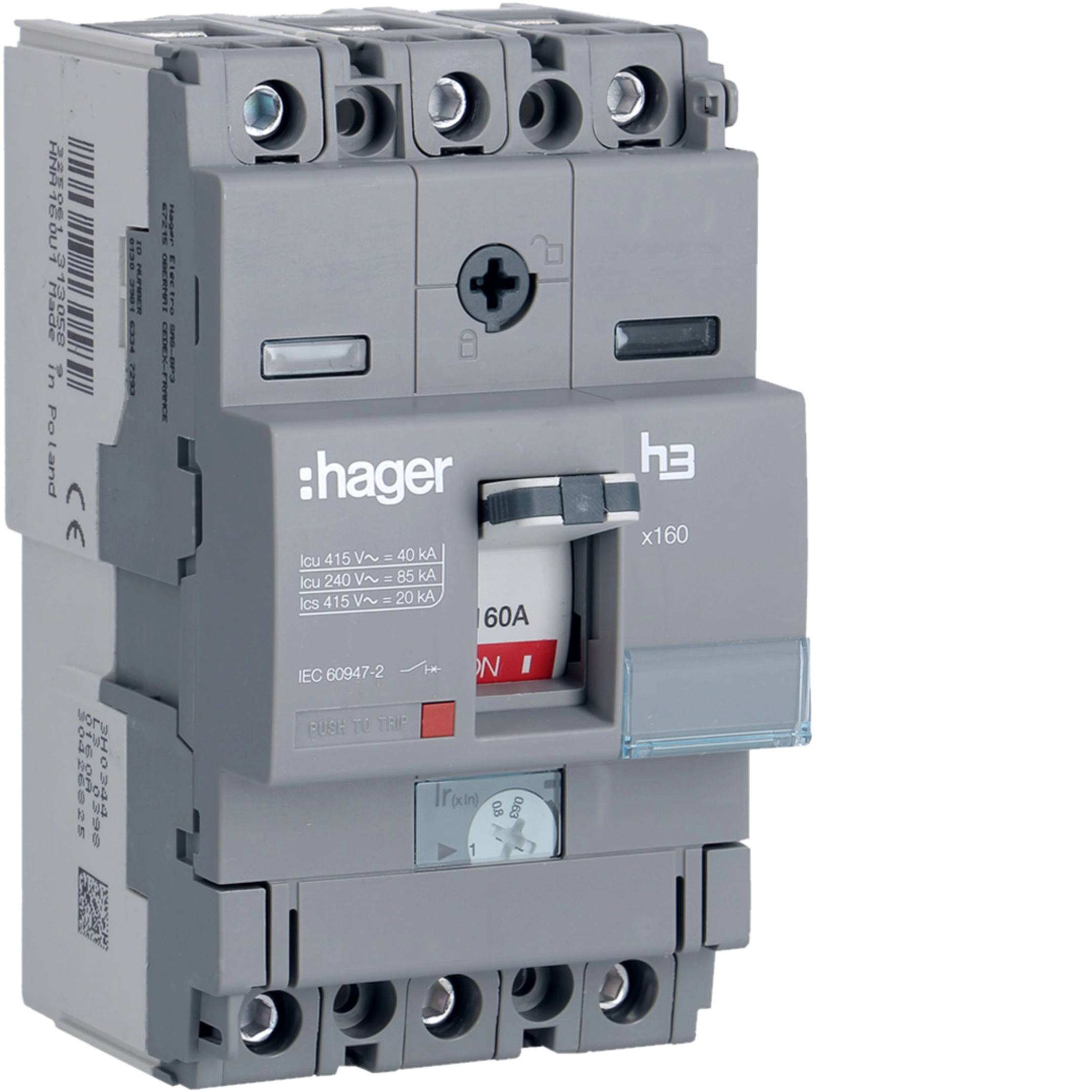

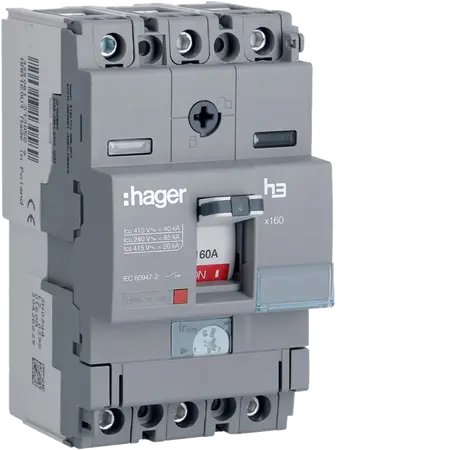

Product Name/Title: Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 160A 40kA CTC
Brand: Hager
SKU: HNA160U
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 160A
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 40 kA
- Rated service breaking capacity Ics under 400 V AC: 20 kA
- Number of poles: 3
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690 V
- Rated operational voltage Ue: 220 - 415 V
- Total power loss under IN: 43.80 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Connection type: Screw terminal
- Flexible conductor cross-section: 4 - 70 mm²
- Rigid conductor cross-section: 4 - 95 mm²
- Dimensions (H x L x W): 130mm x 68mm x 75mm
- Weight: 2.5 kg
Key Features
- Rated current of 160 A with a breaking capacity of 40 kA at 400 V AC.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in office buildings
- Residential: Main electrical panels in homes
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 160A 40kA CTC is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical systems.
