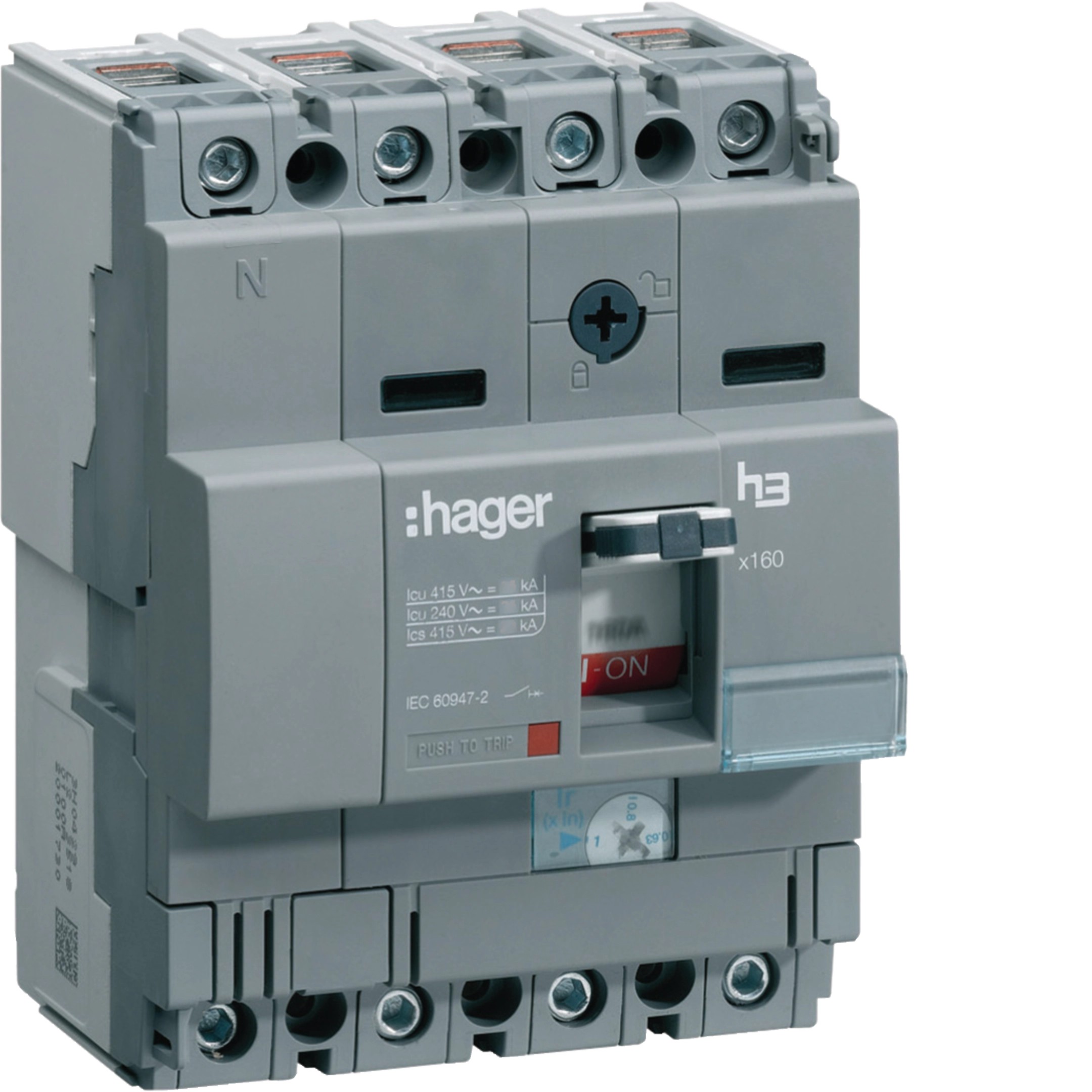

Product Name/Title: Moulded Case Circuit Breaker h3 x160 TM ADJ 4P4D N0-100% 100A 40kA CTC
Brand: Hager
SKU: HNA101U
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 100A
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 40 kA
- Rated service breaking capacity Ics under 230 V AC: 40 kA
- Rated operational voltage Ue: 220 - 415 V
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690 V
- Total power loss under IN: 35.70 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Connection type: Screw terminal
- Flexible conductor cross-section: 4 - 70 mm²
- Rigid conductor cross-section: 4 - 95 mm²
- Dimensions (H x L x W): 130mm x 68mm x 100mm
- Weight: 2.5 kg
Key Features
- Rated current of 100A with a breaking capacity of 40kA.
- Four poles for versatile applications.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in factories and manufacturing plants
- Commercial: Electrical systems in office buildings and retail spaces
- Residential: Main electrical panels in homes
Standards & Compliance
- Complies with AS/NZS 60947-2 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Moulded Case Circuit Breaker 100A 40kA is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
