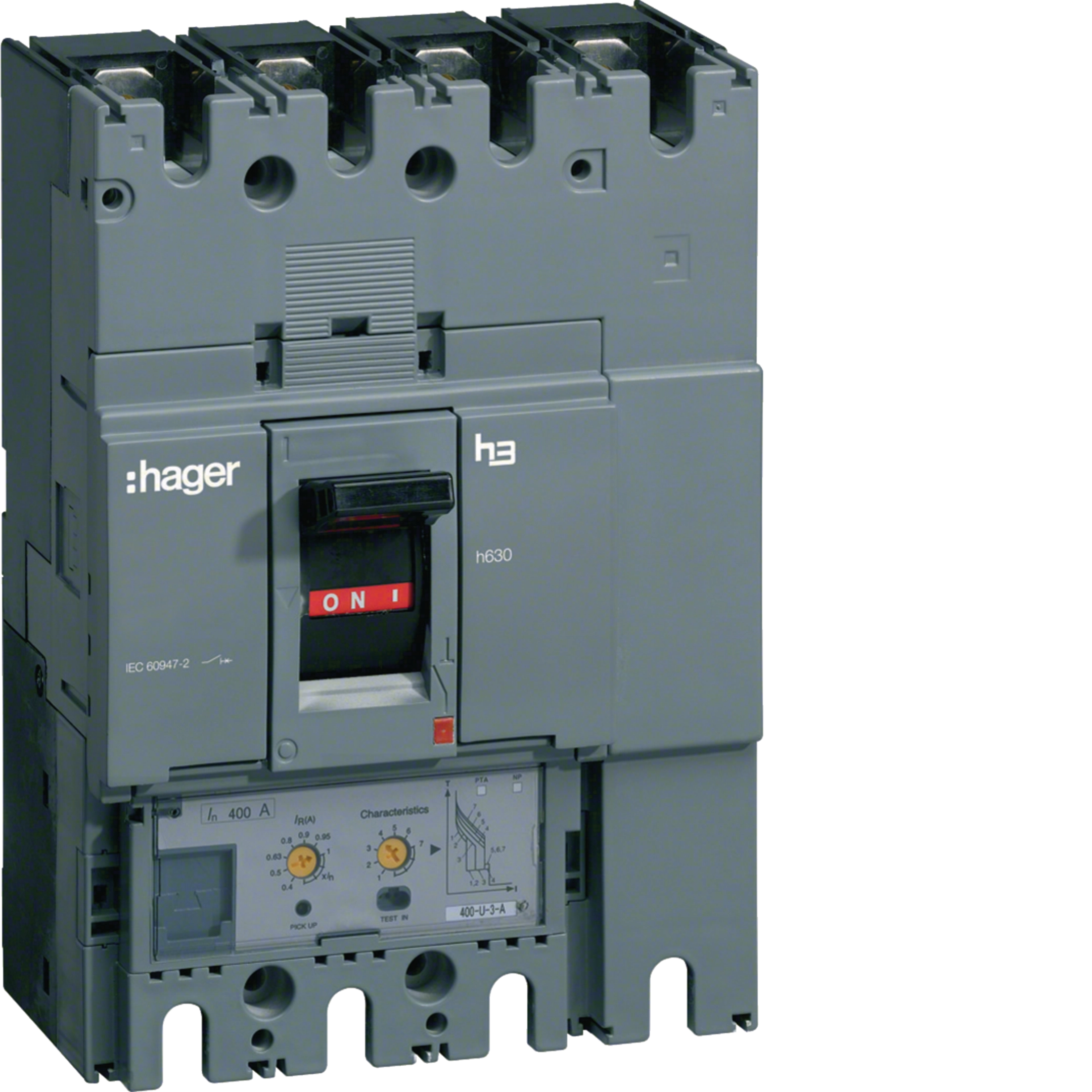

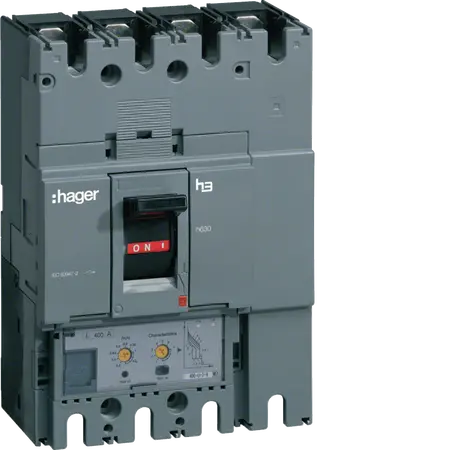

Product Name/Title: Moulded Case Circuit Breaker h630 4P 70kA 630A LSI
Brand: Hager
SKU: HED631H
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 630A
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 70 kA
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 800 V
- Rated operational voltage Ue: 220 - 690 V
- Ingress Protection (IP) class: IP4X
- Operating temperature: -25 - 70 °C
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- Rated current of 630 A with a breaking capacity of 70 kA under 415 V AC.
- 4 poles for comprehensive circuit protection.
- Fast tripping response time of 10 ms.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- Residential: Main electrical panels in homes
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to improve environmental performance by reducing carbon footprint.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker h630 4P 70kA 630A LSI is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
