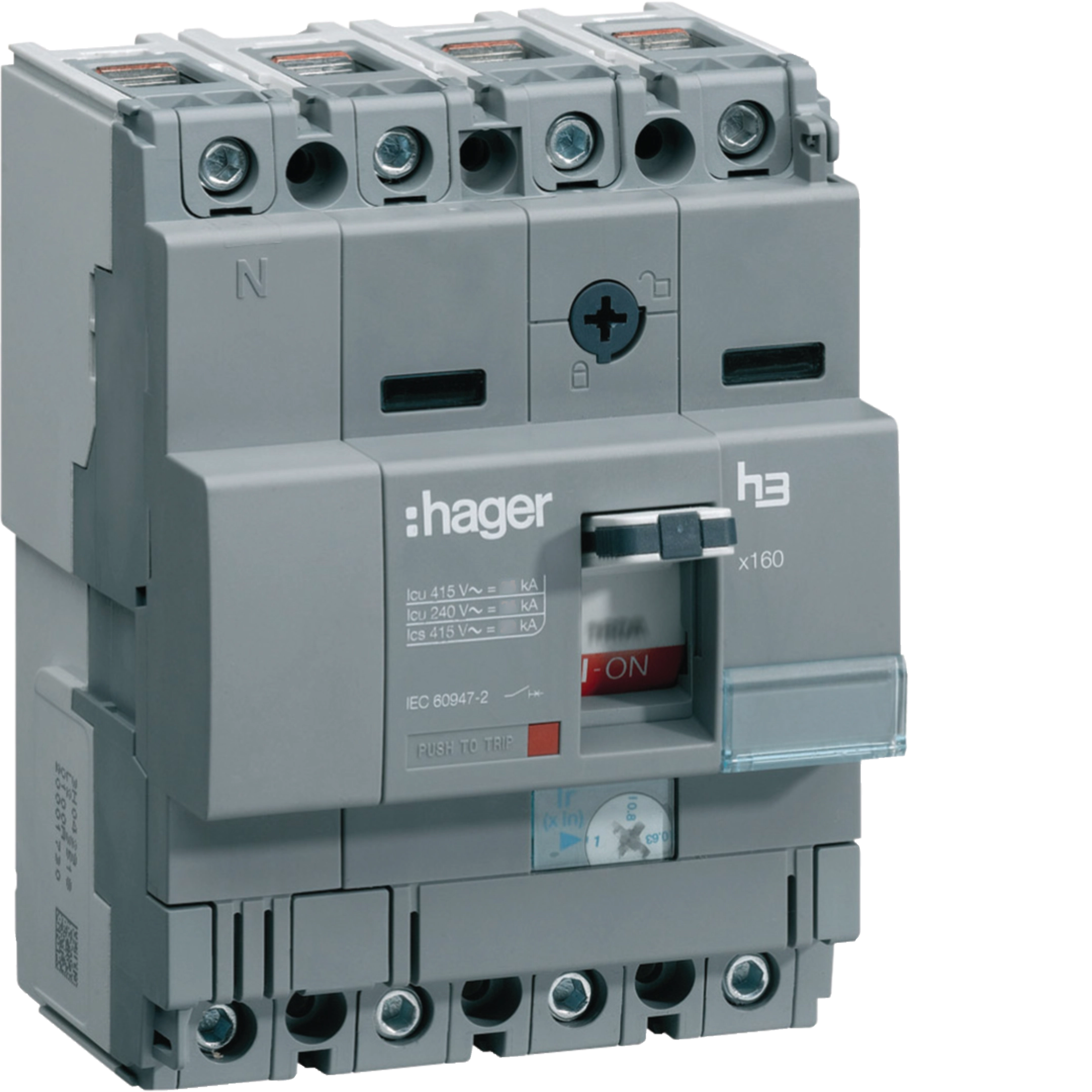

Product Name/Title: Moulded Case Circuit Breaker x160 4P 40kA 40A
Brand: Hager
SKU: HNA041U
Alternatively Known As: MCCB, Moulded Case Breaker, Circuit Breaker 40A
Technical Specifications
- Rated current: 40 A
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 40 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690 V
- Rated operational voltage Ue: 220 - 415 V
- Total power loss under IN: 11 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Ingress Protection (IP) class: IP4X
- Connection: Screw terminal for flexible conductor 4 - 70 mm², rigid conductor 4 - 95 mm²
- Nominal tightening torque: 6 - 6 Nm
- Dimensions (H x L x W): 200mm x 150mm x 100mm
- Weight: 2.5 kg
Key Features
- Rated current of 40 A with a breaking capacity of 40 kA.
- Four poles for versatile applications.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in office buildings
- Residential: Main electrical supply protection in homes
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency, reducing overall power loss.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker x160 4P 40kA 40A is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
