HV5803T-BLK-12V

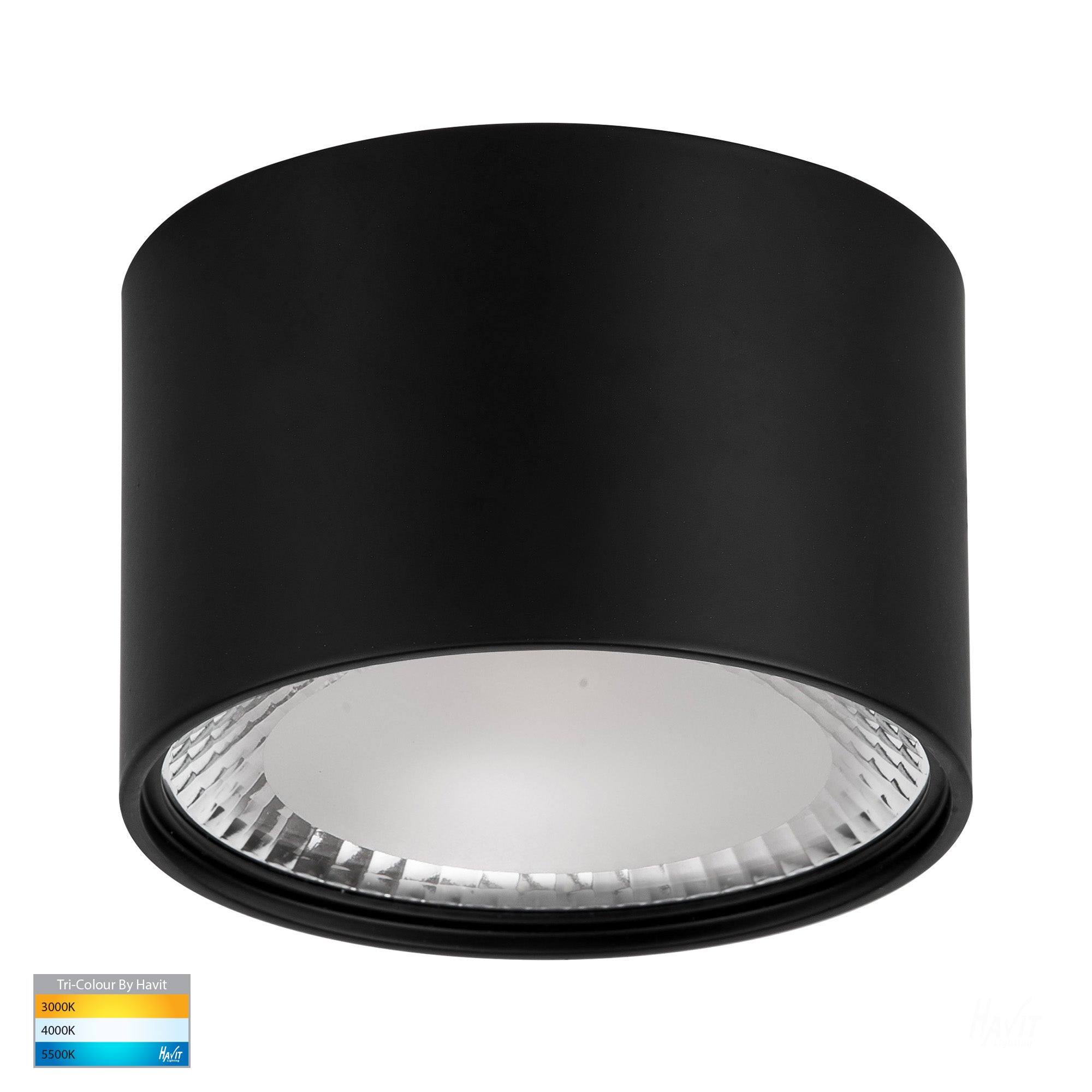

Nella Black 12w Surface Mounted LED Downlight


$150.60 List price: $196.10
+

Weight: 0.500 kg

Product Name/Title: Nella Black 12w Surface Mounted LED Downlight

Brand: Havit

SKU: HV5803T-BLK-12V

Alternatively Known As: 12w LED Downlight, Surface Mounted Downlight, Dimmable LED Downlight

Technical Specifications
  • Power Wattage: 12W
  • Input Voltage: Available in either 12v DC or 240v AC
  • Lumens Output: 995lm / 1125lm / 1050lm
  • IP Rating: IP54
  • Beam Angle: 120°
  • Colour Temperature: 3000k / 4000k / 5500k
  • Dimmable: Yes (240v Model Only)
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Aluminium powder coated black finish
  • 120° beam angle
  • Triac Dimmable (240v Model Only)
  • IP54 rated for dust and water resistance
  • Available in 12v DC or 240v AC input voltage
  • Tri Colour options: 3000k, 4000k, 5500k
  • Built-in 12w LED
Professional Installation Requirements
  • Professional installation is recommended, especially for the 12v model which requires a suitable 12v DC LED Driver.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring effective lighting solutions
Environmental Benefits
  • Energy-efficient built-in LED reduces power consumption.
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Nella Black 12w Surface Mounted LED Downlight is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

Data Sheet (HV5803T_Data_Sheet_JULY23.pdf, 491 Kb) [Download]

240v Installation Instructions (HV5802-3-5_Installation_Instructions_MAR22.pdf, 437 Kb) [Download]

12v DC Installation Instructions (HV5802-3-5_12v_DC_Installation_Instructions_DEC23.pdf, 349 Kb) [Download]


Lighting Calculator
