HV5802T-WHT-EXT-12V

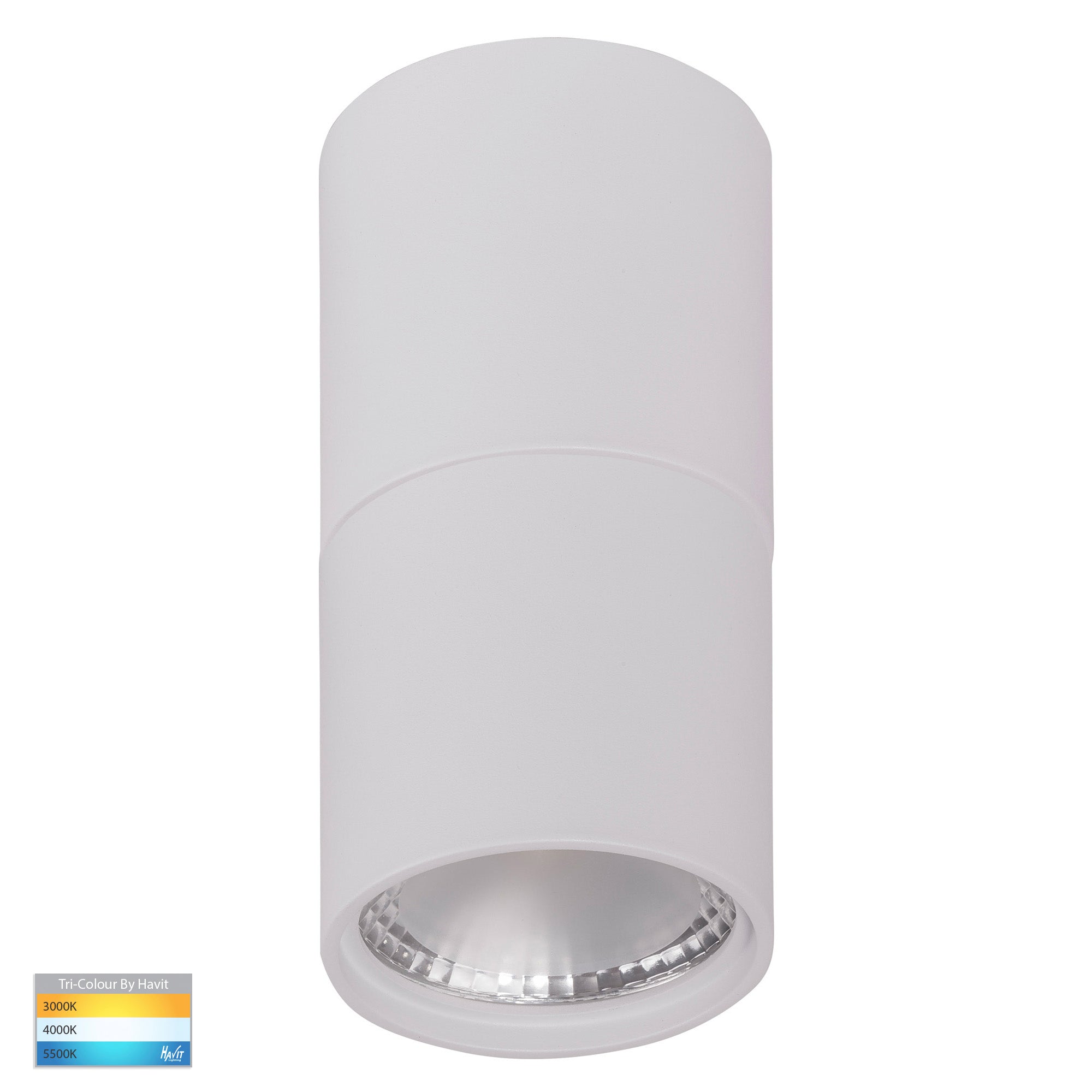

Nella White 7w Surface Mounted LED Downlight with Extension


$135.40 List price: $176.20
+

Weight: 0.500 kg

Product Name/Title: Nella White 7w Surface Mounted LED Downlight with Extension

Brand: Havit

SKU: HV5802T-WHT-EXT-12V

Alternatively Known As: 7w LED Downlight, Surface Mounted Downlight, Dimmable LED Downlight

Technical Specifications
  • Power Wattage: 7W
  • Input Voltage: Available in either 12v DC or 240v AC
  • Colour Temperature: 3000K, 4000K, 5500K
  • Lumens Output: 525lm, 560lm, 540lm
  • IP Rating: IP54
  • Beam Angle: 120°
  • Included LED: Built-in 7w LED
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Aluminium powder coated white finish
  • 120° beam angle
  • Triac Dimmable (240v Model Only)
  • IP54 rated for protection against dust and water
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring effective lighting solutions
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient design reduces power consumption and long-term waste.
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Nella White 7w Surface Mounted LED Downlight with Extension is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

Data Sheet (HV5802T-EXT_Data_Sheet_JULY23.pdf, 515 Kb) [Download]

240v Installation Instructions (HV5802-3-5_Installation_Instructions_MAR22.pdf, 437 Kb) [Download]

12v DC Installation Instructions (HV5802-3-5_12v_DC_Installation_Instructions_DEC23.pdf, 349 Kb) [Download]


Lighting Requirement Calculator







This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
