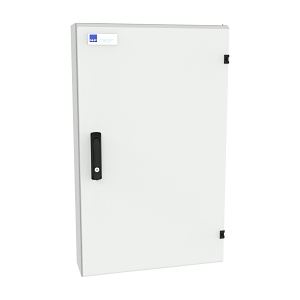

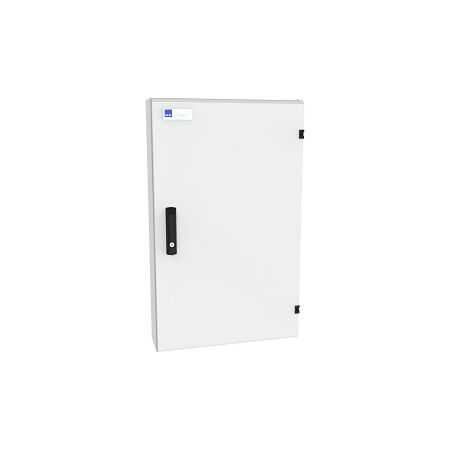

Product Name/Title: NHP Concept One Panelboard 1080mm IP40 DIN 60 Way 160A MCCB Break Main Switch Light Grey
Brand: NHP
SKU: COE60MCCB160LG
Alternatively Known As: NHP Distribution Board, NHP Panelboard, NHP Circuit Breaker Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 60
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Main Switch Rated Current: 160 A
- Circuit Breaker as Main Switch: Yes
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 16
- Material Housing: Steel
- Material Thickness: 1 mm
- Degree of Protection: IP40
- Impact Strength: IK07
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1080mm x 153mm x 530mm
- Weight: 25 kg
Key Features
- 60 outgoing ways for versatile circuit management.
- IP40 rated for protection against solid objects.
- 160A main switch with MCCB for reliable circuit protection.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, workshops, and manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable steel housing reduces waste and extends product life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept One Panelboard 1080mm IP40 DIN 60 Way 160A MCCB Break Main Switch Light Grey is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
