COE84M250LG

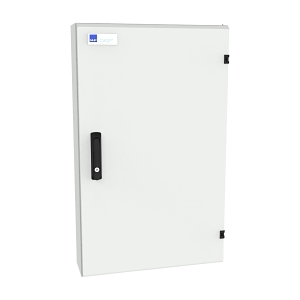

NHP Concept One Panelboard 1296mm IP40 DIN 84 Way 250A Main Switch Light Grey


$1,387.60 List price: $1,842.60
+

Weight: 25.000 kg

Product Name/Title: NHP Concept One Panelboard 1296mm IP40 DIN 84 Way 250A Main Switch Light Grey

Brand: NHP

SKU: COE84M250LG

Alternatively Known As: NHP Distribution Board, NHP Panelboard, NHP Electrical Panel

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 84
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Number of Poles Main Switch: 3
  • Neutral Terminal Block: Yes
  • Earthing Terminal Block: Yes
  • Spare DIN Equipment Space Poles: 16
  • Material Housing: Steel
  • Material Thickness: 1 mm
  • Degree of Protection: IP40
  • Impact Strength: IK07
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 1296mm x 153mm x 530mm
  • Weight: 25 kg
Key Features
  • 84 outgoing ways for extensive electrical distribution.
  • 250A main switch for high capacity.
  • IP40 rating for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for safety and compliance.
Applications
  • Commercial: Industrial facilities, commercial buildings
  • Residential: Large homes requiring robust electrical distribution
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable steel housing reduces waste and increases longevity.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept One Panelboard is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
