COE24MCCB200LG

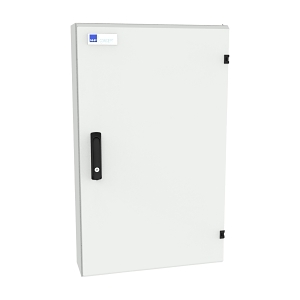

NHP Concept One Panelboard 648mm IP40 DIN 24 Way 200A MCCB Break Main Switch Light Grey


$2,512.00 List price: $3,335.50
+

Weight: 15.000 kg

Product Name/Title: NHP Concept One Panelboard 648mm IP40 DIN 24 Way 200A MCCB Break Main Switch Light Grey

Brand: NHP

SKU: COE24MCCB200LG

Alternatively Known As: NHP Distribution Board, NHP Panelboard, NHP MCCB Panel

Technical Specifications
  • Rated Current: 250 A
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Number of Poles: 24
  • Main Switch Rated Current: 200 A
  • Material Housing: Steel
  • Impact Strength: IK07
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 648mm x 153mm x 530mm
  • Weight: 15 kg
Key Features
  • 24 outgoing ways for versatile circuit management.
  • 200A main switch with MCCB for enhanced protection.
  • IP40 rating for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for safety and compliance.
Applications
  • Commercial: Industrial facilities, office buildings, and retail spaces
  • General: Any location requiring a reliable power distribution solution
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable steel housing reduces waste and extends product lifespan.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept One Panelboard is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable power distribution.
