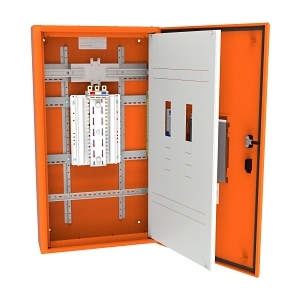

Product Name/Title: NHP Concept Plus Panelboard 1728mm IP42 DIN-T 96 Way 250A with Extra Row No Main Switch Orange
Brand: NHP
SKU: CPLX96O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, NHP Electrical Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 96
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 250 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 42
- DIN Rail: Yes
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 1728mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 96 outgoing ways for extensive circuit management.
- 250A rated current for high capacity.
- IP42 rated for protection against solid objects greater than 1mm.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: Large homes requiring extensive electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable steel construction reduces waste and extends product life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1728mm IP42 DIN-T 96 Way 250A is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
