CPL24O

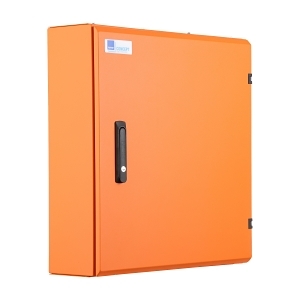

NHP Concept Plus Panelboard 648mm IP42 DIN-T 24 Way 250A NC Chassis No Main Switch Orange


$886.10 List price: $1,176.60
+

Weight: 15.000 kg

Product Name/Title: NHP Concept Plus Panelboard 648mm IP42 DIN-T 24 Way 250A NC Chassis No Main Switch Orange

Brand: NHP

SKU: CPL24O

Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Board

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 24
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Neutral Terminal Block: Yes
  • Earthing Terminal Block: Yes
  • Material Housing: Steel
  • Material Thickness: 1.6 mm
  • Degree of Protection: IP42
  • Impact Strength: IK10
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 648mm x 200mm x 600mm
  • Weight: 15 kg
Key Features
  • 24 outgoing ways for versatile circuit management.
  • Rated current of 250 A for robust performance.
  • IP42 rating for protection against solid objects and limited water ingress.
  • Surface mounted design for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Retail spaces, offices, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable steel housing reduces waste and extends product life.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard 648mm IP42 DIN-T 24 Way 250A is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.
