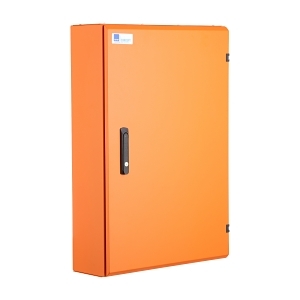

Product Name/Title: NHP Concept Plus Panelboard 864mm IP42 DIN-T 48 Way 250A NC Chassis No Main Switch Orange
Brand: NHP
SKU: CPL48O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 48
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Impact Strength: IK10
- Degree of Protection: IP42
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 864mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- 250A rated current with 48 outgoing ways.
- IP42 rated for protection against solid objects larger than 1mm and against water spray.
- Constructed from durable steel with a thickness of 1.6mm.
- Surface mounted design with a lockable door for added security.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, office buildings, and large residential complexes
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 864mm IP42 DIN-T 48 Way 250A is available now for immediate purchase. Ideal for commercial and industrial applications.
