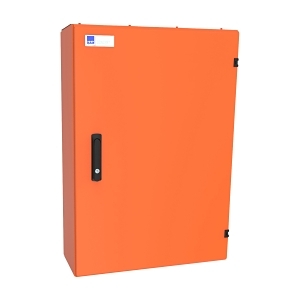

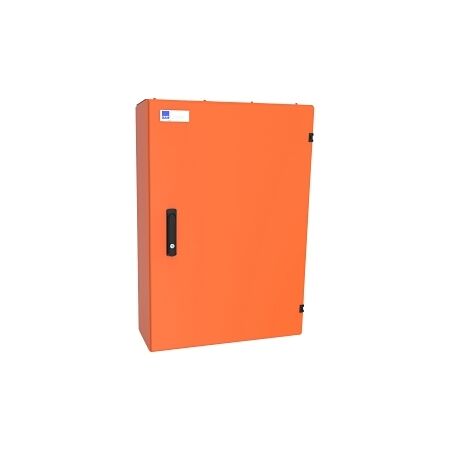

Product Name/Title: NHP Concept Premier Panelboard 1080mm IP66 DIN-T 60 Way 250A 250A Main Switch Orange
Brand: NHP
SKU: CPR60M250O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Electrical Distribution Panel
- Rated Current: 250 A
- Number of Outgoing Ways: 60
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Material Housing: Steel
- Degree of Protection: IP66
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1080mm x 240mm x 600mm
- Weight: 25 kg
- IP66 rated for protection against dust and water ingress.
- Robust steel housing with a thickness of 1.6 mm.
- Includes a 250A main switch and 60 outgoing ways.
- Professional installation by a qualified electrician is required for optimal safety and compliance.
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any application requiring robust electrical distribution
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
- Durable materials reduce the need for frequent replacements.
1 year warranty against manufacturing defects.
The NHP Concept Premier Panelboard 1080mm IP66 DIN-T 60 Way 250A Main Switch Orange is available now for immediate purchase. Ideal for commercial and industrial applications.
