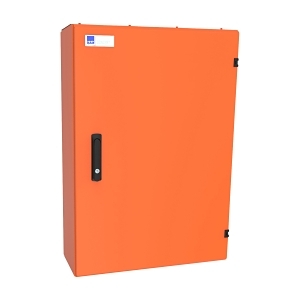

Product Name/Title: NHP Concept Premier Panelboard 1296mm IP66 DIN-T 84 Way 250A 250A Main Switch Orange
Brand: NHP
SKU: CPR84M250O
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, DIN Rail Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 250 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Material Housing: Steel
- Impact Strength: IK10
- Type of Cover: Door
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1296mm x 240mm x 600mm
- Weight: 50 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- 84 outgoing ways for extensive electrical distribution.
- 250A main switch for high current applications.
- Steel housing with a thickness of 1.6 mm for durability.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: High-demand residential applications requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 1296mm IP66 DIN-T 84 Way 250A is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
Non-Returnable & Non-Cancellable
