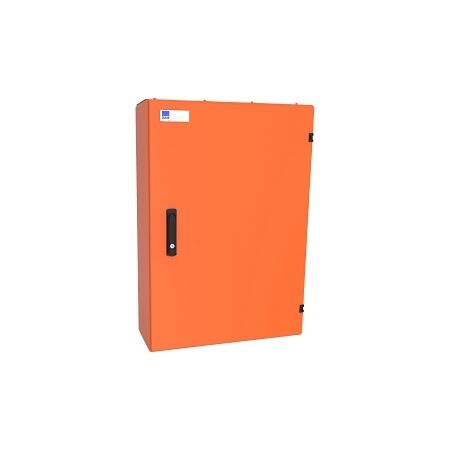

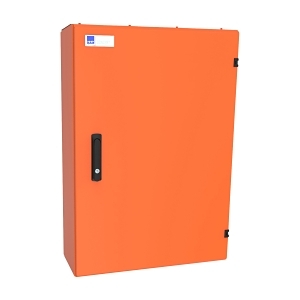

Product Name/Title: NHP Concept Premier Panelboard 1512mm IP66 DIN-T 96 Way 250A No Main Switch Orange
Brand: NHP
SKU: CPR96O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Electrical Distribution Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 96
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP66
- Impact Strength: IK10
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1512mm x 240mm x 600mm
- Weight: 50 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- 96 outgoing ways for extensive circuit management.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 1512mm IP66 DIN-T 96 Way 250A No Main Switch Orange is available now for immediate purchase. Ideal for commercial and industrial applications.
