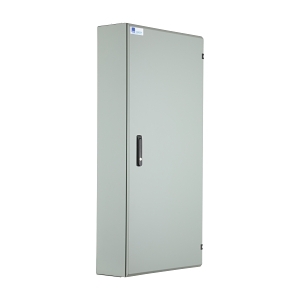

Product Name/Title: NHP Concept Premier Panelboard 400A 1080mm DIN-T 72 Way Chassis 400A Main Switch Grey
Brand: NHP
SKU: CPRH72M400G
Alternatively Known As: NHP Distribution Board, NHP Electrical Panel, NHP Circuit Breaker Panel
Technical Specifications
- Rated Current: 400 A
- Number of Outgoing Ways: 72
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 400 A
- Earthing Terminal Block: Yes
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP66
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 1296mm x 240mm x 600mm
- Weight: 25 kg
Key Features
- 400A main switch for high current applications.
- 72 outgoing ways for extensive circuit management.
- IP66 rated for protection against dust and water ingress.
- IK10 impact strength for enhanced durability.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: High-demand residential applications requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 400A 72 Way Chassis is available now for immediate purchase. Ideal for commercial and high-demand residential applications.
