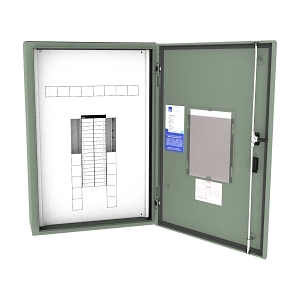

Product Name/Title: NHP Concept Premier Panelboard 864mm IP66 DIN-T 36 Way 250A No Main Switch Grey
Brand: NHP
SKU: CPR36G
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, 36 Way Panelboard
Technical Specifications
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 250 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP66
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 864mm x 240mm x 600mm
- Weight: 25 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- 36 outgoing ways for extensive electrical distribution.
- Surface mounted design for easy installation.
- Steel housing with a thickness of 1.6 mm for durability.
- Impact strength rated IK10 for high resistance to mechanical impacts.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: High-demand residential applications requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Designed for longevity, reducing the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 864mm IP66 DIN-T 36 Way 250A is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
