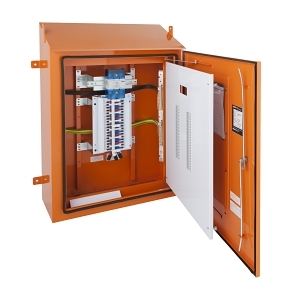

Product Name/Title: NHP Concept Tough Panelboard Size 3 1500mm IP66 DINT 84 Way 250A Main Switch Stainless Steel Orange
Brand: NHP
SKU: CTD84M250SSO
Alternatively Known As: Tough Panelboard, Industrial Panelboard, Electrical Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles: 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Material Housing: Stainless Steel
- Material Thickness: 2 mm
- Degree of Protection: IP66
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1500mm x 324mm x 800mm
- Weight: 50 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Stainless steel housing for durability and corrosion resistance.
- 84 outgoing ways for extensive electrical distribution.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Factories, manufacturing plants
- Commercial: Retail spaces, office buildings
- General: Any location requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Tough Panelboard Size 3 1500mm IP66 DINT 84 Way 250A Main Switch Stainless Steel Orange is available now for immediate purchase. Ideal for industrial and commercial electrical distribution.
Non-Returnable & Non-Cancellable
