Home/Cabling and Accessories/Wiring Accessories/Electrical Connectors/NHP Connector 3 Port (Pack of 100) Series 222

Trade Discount 23%

SKU: 222-43

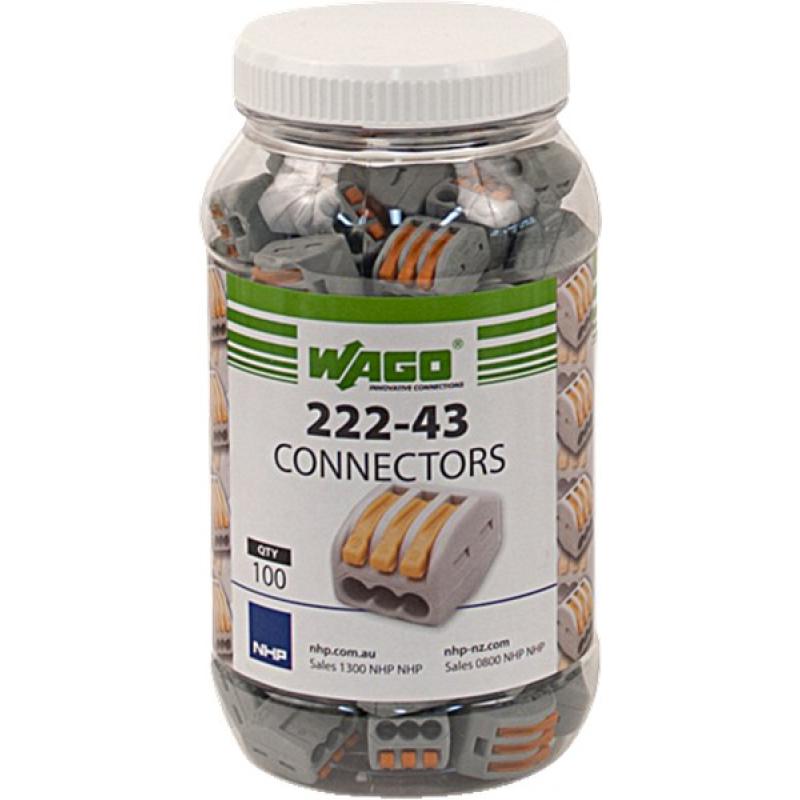

NHP Connector 3 Port (Pack of 100) Series 222

$41.40 List price: $53.90

+ −

30 Days Return Delivery Options

Weight: 1.000 kg

Description

Product Name/Title: NHP 3-Port Connector Series 222 (Pack of 100)

Brand: NHP

SKU: 222-43

Alternatively Known As: NHP Series 222 connector, 3-way wire connector, lever-operated electrical connector

Technical Specifications

Voltage Rating: 400V
Current Rating: 32A

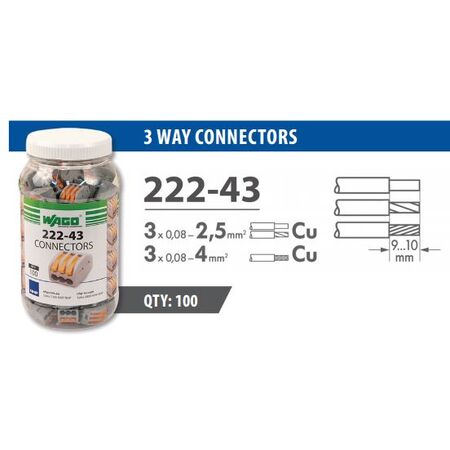

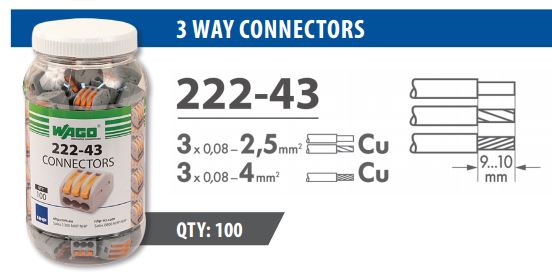

Wire Size Compatibility:
- Solid and Stranded: 0.08mm² to 2.5mm²
- Fine-Stranded: 0.08mm² to 4mm²
Material: Flame-retardant thermoplastic housing

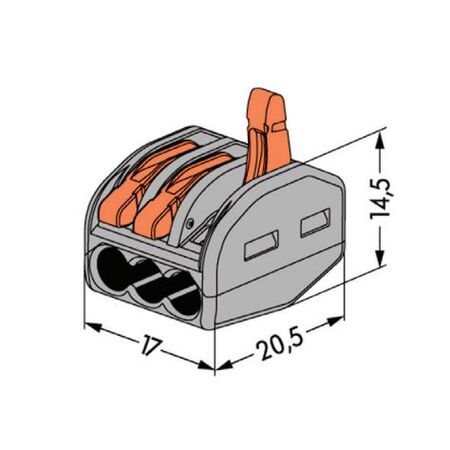

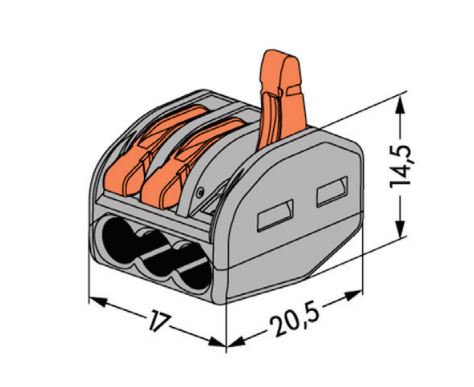

Dimensions: 17mm (W) x 14.5mm (H) x 20.5mm (D)
Weight: 0.18 kg (per pack of 100)
Operating Temperature: Up to 40°C
Compliance: AS3000 compliant

Key Features

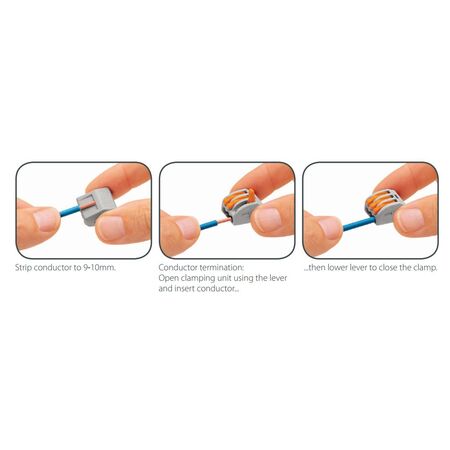

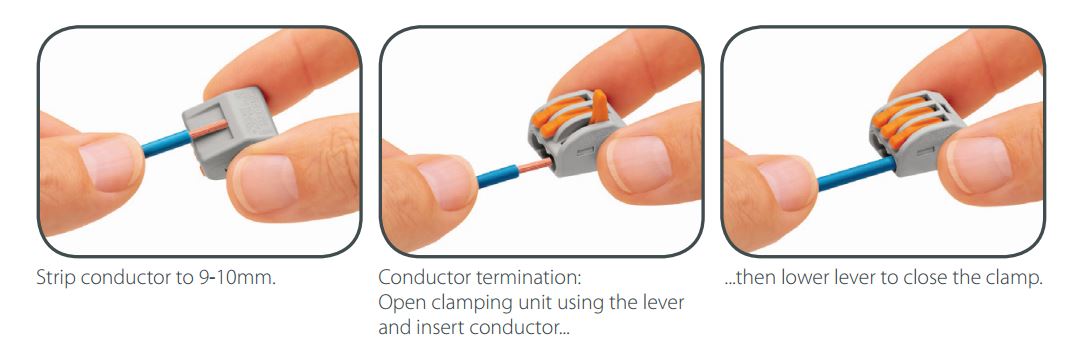

Lever-operated CAGE CLAMP® technology for quick and secure connections
Accommodates various wire types and sizes without the need for tools
Compact design ideal for tight spaces and junction boxes
Flame-retardant housing enhances safety
Transparent housing allows visual inspection of connections

Professional Installation Requirements

Installation should be performed by a qualified electrician
Ensure power is disconnected before installation
Verify compatibility with wire sizes and electrical load
Follow all local electrical codes and regulations

Applications

Residential: General wiring, lighting installations, and appliance connections
Commercial: Office fit-outs, retail spaces, and industrial equipment connections
Automotive: Suitable for various vehicle wiring applications

Australian Compliance

Standard: Complies with AS3000 electrical standards
Declared Item: Yes – Meets Electrical Equipment Safety System (EESS) requirements

Environmental Benefits

Eco-Friendly Materials: Constructed with recyclable materials
Durability: Long-lasting design reduces the need for replacements, minimizing waste
Safety: Flame-retardant properties contribute to safer electrical installations

Available Now

The NHP 3-Port Connector Series 222 (Pack of 100) is in stock and ready for immediate dispatch. Enhance your electrical projects with these reliable and easy-to-use connectors, designed to meet Australian standards and provide secure connections for various applications.
